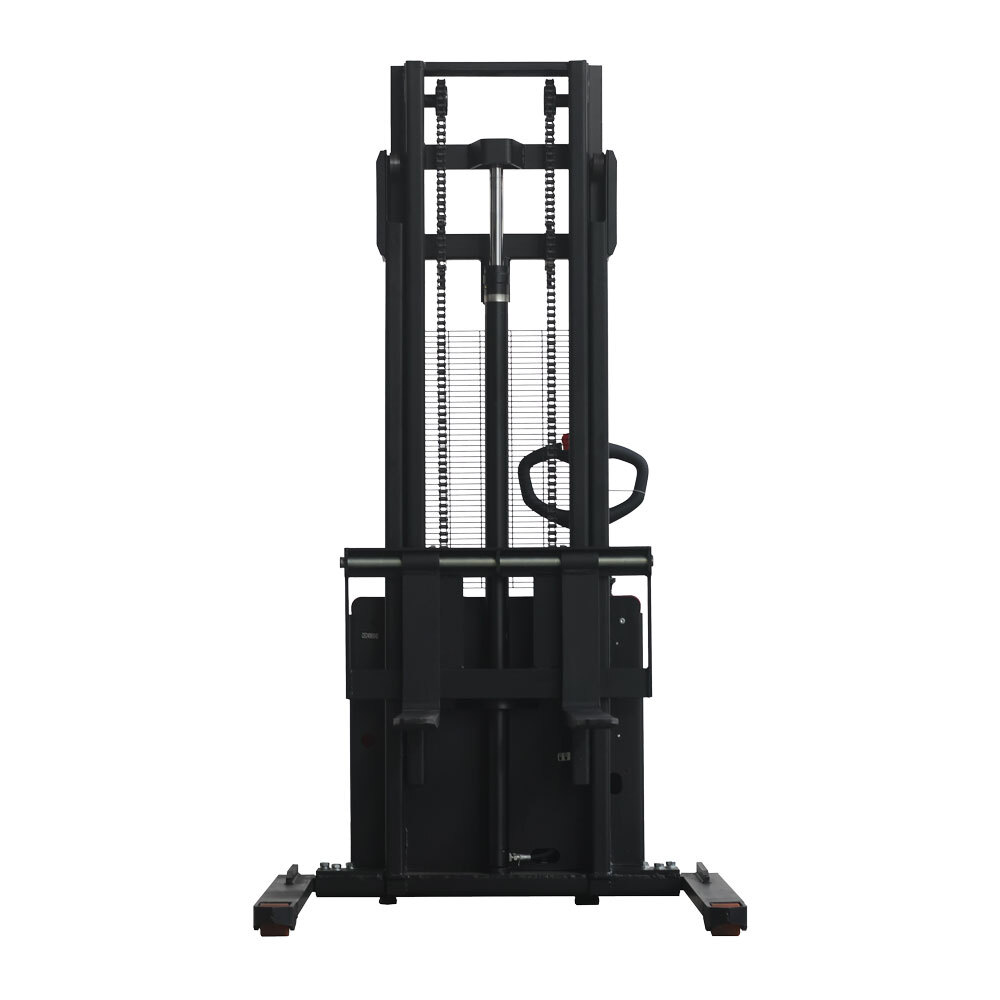

3.5m Lift Height - Electric Stacker Lithium Power 1200KG
3.5m Lift Height - Electric Stacker Lithium Power 1200KG
Code: QPSE12N-35
$7,590.00 $6,900.0013% OFF was RRP $8,690.00 inc-GST
40% OFF
RRP $24,900.00
4.5m Lift Height - Electric Counterbalanced Lithium Power Stacker 1600KG
Check Stock Level
Online Delivery:
Available
In-Store Pickup:
Check Level
- Perfect for light-duty application, Compact & light service weight.
- High maneuverability, ideal for use on mezzanines.
- The ultimate solution for light-duty operations.
- Centred motor with excellent traction and stability, installed with 24V DC permanent magnetic drive motor.
- Operator protection Plexiglass.
- Adjustable base legs.
- Drive with the tiller in a vertical position.
- Equipped the ergonomic control handle with horn & emergency belly button.
- Dual buttery-style thumb control for travelling.
- Electric Lifting and Lowering Buttons.
- 24V/60Ah LFP Lithium Battery with 24V/25A charger, fast charging 2.5 hours only.
DATA SHEET
| Model | QPSE12N-35 |
| Drive | Battery |
| Operator Type | Pedestrian |
| Capacity | 1200kg |
| Load Centre Distance | 600mm |
| Service Weight (Without Battery) | 485kg |
| Battery Weight (Lithium Battery) | 20kg |
| Tyres Material | PU |
| Front Tyres Size | 80x70mm |
| Rear Tyres Size | 210x70mm |
| Balance Wheels (Dimensions) | 150x50mm |
| Wheels, Number Front/Rear | 2/1 |
| Front Tread | 400mm |
| Rear Tread | 540mm |
| Lowered Mast Height | 2250mm |
| Mast Lift Height | 3500mm |
| Extended Mast Height | 3960mm |
| Height of Tiller in Drive Position Min./Max. | 880-1320mm |
| Height, Lowered | 90mm |
| Overall Length | 1750mm |
| Length to Face of Forks | 1125mm |
| Overall Width | 800mm |
| Outer Width of Leg | 1188-1470mm |
| Inner Width of Leg | 988-1270mm |
| Length of Leg | 1067mm |
| Fork Dimensions | 55/160/1125mm |
| Distance Between Fork-Arms | 240mm |
| Ground Clearance, Centre of Wheelbase | 35mm |
| Aisle Width for Pallets 1000x1200 Crossways | 2305mm |
| Aisle Width for Pallets 800x1200 Lengthways | 2230mm |
| Turning Radius | 1440mm |
| Travel Speed, Laden/Unladen | 3.5/4.0km/h |
| Lift Speed, Laden/Unladen | 81/130m/s |
| Lowering Speed, Laden/Unladen | 130/80m/s |
| Max. Gradeability, Laden/Unladen | 3-7% |
| Service Brake | Electromagnetic |
| Drive Motor Rating | 2.2KW |
| Lift Motor Rating | 0.75KW |
| Battery Voltage, Nominal Capacity | Lithium battery 24V50AH |
| Battery Size L x W x H | Lithium battery 330x90x480mm |
| Type of Control | DC-Speed Control |
| Sound Level at Drive's Ear acc. to EN12053 | <70dB(A) |
| Code | QPSE12N-35 |
| Brand | MATEX |
