About
Learn what makes this product unique and why it’s right for you.

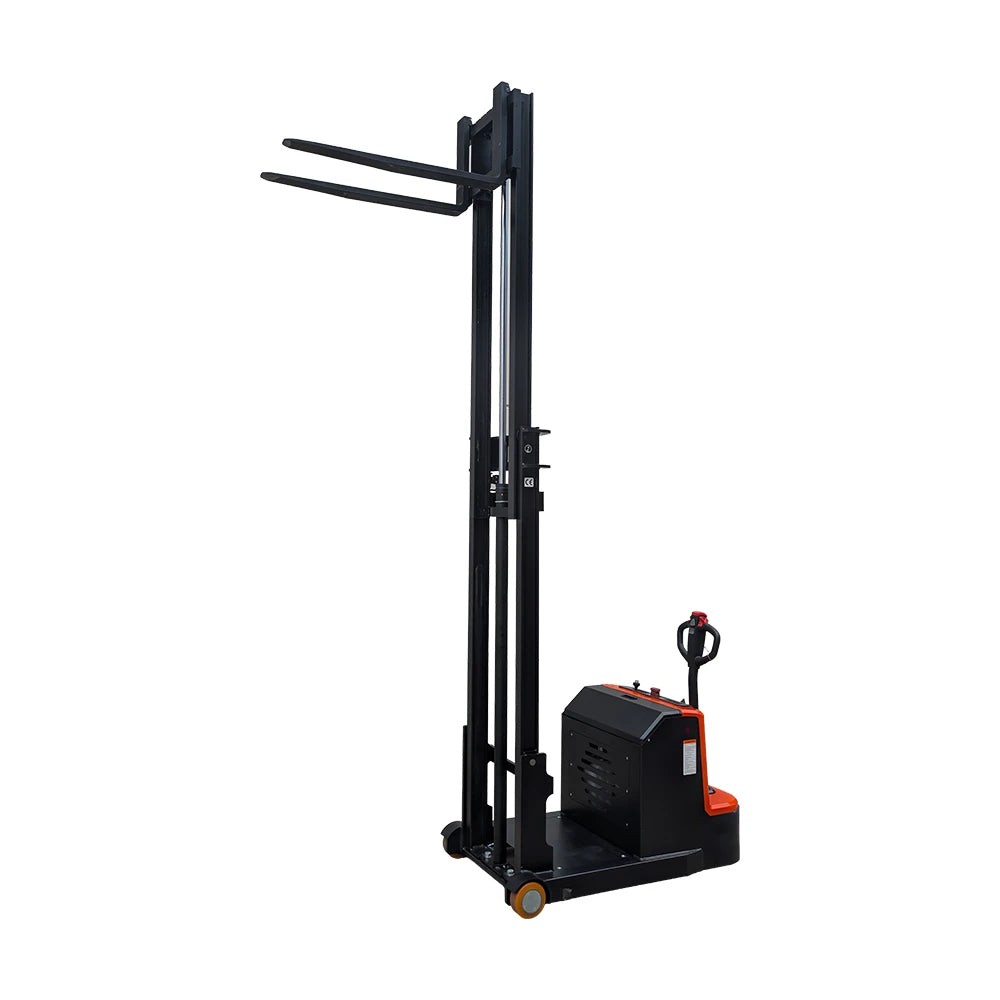

- Counterbalanced electric stacker designed for lifting, transporting, and stacking goods in warehouses, stockrooms, and other material-handling environments.
- Pedestrian-operated design with electric drive and electric lifting functions for easier everyday use.
- Counterbalanced layout allows handling of loads without front support legs under the fork area, making it suitable for applications where standard straddle stackers are less practical.
- Rated capacity of 1000 kg.
- 500 mm load centre.
- Lift heights available up to 3440 mm, depending on mast configuration.
- Compact and manoeuvrable design suited to hard, level floor surfaces.
- Polyurethane wheels for smooth operation and durability.

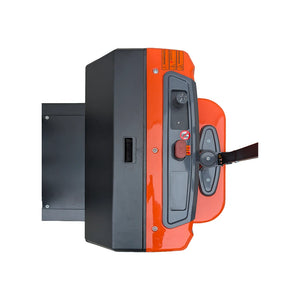

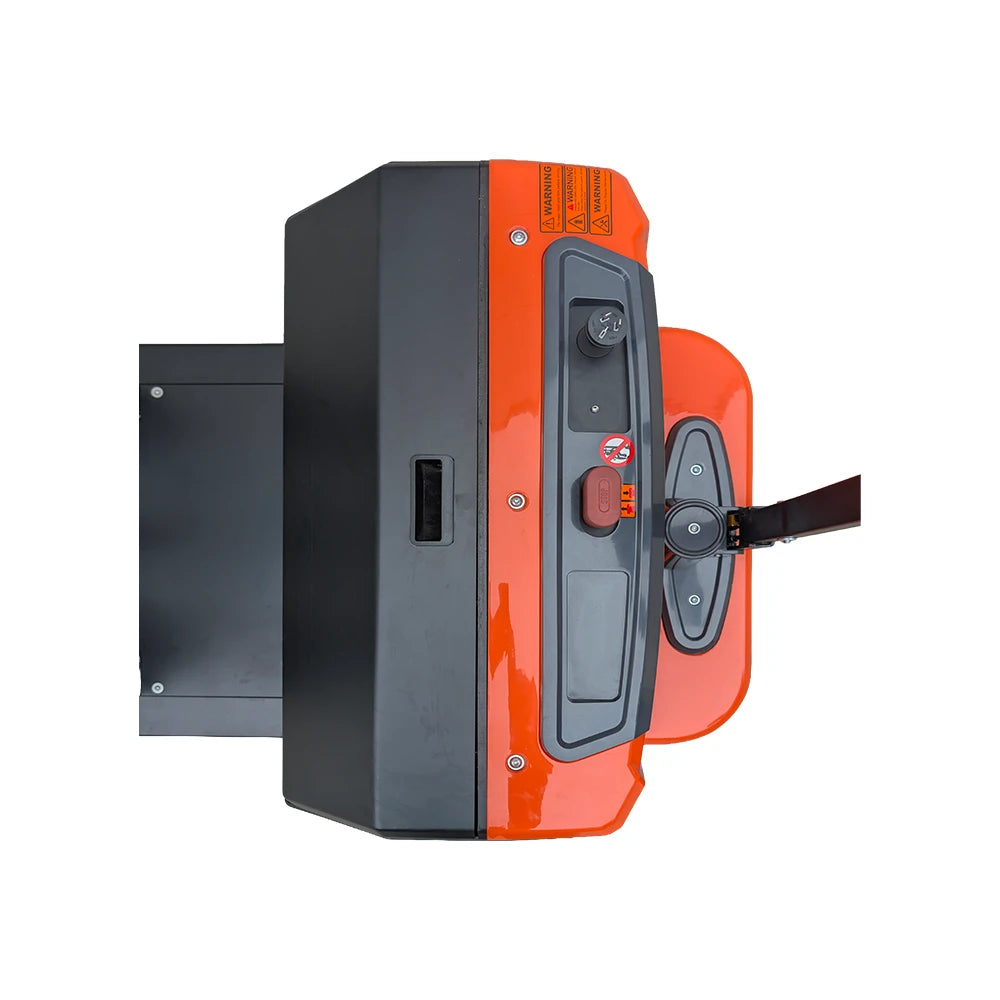

- Equipped with safety-focused controls including horn, emergency reverse switch, magnetic brake, and lift controls on the tiller handle.
- Travel speed up to approximately 4.3 km/h laden and 4.5 km/h unladen.
- Lowering speed approximately 0.11 m/s laden and 0.12 m/s unladen.
- Gradeability up to 6% laden and 10% unladen.
- Features DC speed control and an electromagnetic braking system.
- Includes safety systems such as lift height limitation and lifting speed limitation at higher fork heights.
- Includes safety systems such as lift height limitation and lifting speed limitation at higher fork heights.
- Built for short-distance cargo handling, pallet movement, and rack stacking tasks
- Suitable for use in ambient temperatures from +5°C to +45°C under standard operating conditions.
LEARN THIS PRODUCT SPECIFICATION DATA
Model
QES10MCB
Power Source
Electric
Operation Mode
Pedestrian
Load Capacity
1000kg
Load Centre Distance
500mm
Fork Overhang
101mm
Wheelbase
1175mm
Weight (inc. Battery)
1570kg
Wheel Type
Polyurethane Wheels
Driver Side Wheel Size
⌀210x75
Load Side Wheel Size
⌀160x73
Lowered Mast Height
2020mm
Lift Height
2940mm
Max Extended Height
3492mm
Height of Handle in Min/Max Drive Position
775/1200mm
Lowered Height
60mm
Overall Width
876mm
Overall Length
2500mm
Length to Fork Face
1435mm
Fork Dimensions
35 / 100 / 1070 mm
Distance between Fork Arms
200 - 620 mm
Travel Speed Laden/Unladen
4.03 - 4.51 km/h
Lift Speed Laden/Unladen
0.079 - 0.104 m/s
Lowering Speed Laden/Unladen
0.11 - 0.12 m/s
Max. Gradeability Laden/Unladen
6 - 10%
Service Brake
Electromagnetic brake
Drive Motor Rating min. S2 60
0.9 kW
Lift Motor Rating S3 10%
2.2 kW
Battery Voltage, Rated Capacity KS
2 × 12V / 120Ah
Battery Weight
2 × 33.5 kg
Drive Control Tvpe
DC speed control
Sound Level at Driver's Ear
70 dB(A)
Learn what makes this product unique and why it’s right for you.
- Counterbalanced electric stacker designed for lifting, transporting, and stacking goods in warehouses, stockrooms, and other material-handling environments.
- Pedestrian-operated design with electric drive and electric lifting functions for easier everyday use.
- Counterbalanced layout allows handling of loads without front support legs under the fork area, making it suitable for applications where standard straddle stackers are less practical.
- Rated capacity of 1000 kg.
- 500 mm load centre.
- Lift heights available up to 3440 mm, depending on mast configuration.
- Compact and manoeuvrable design suited to hard, level floor surfaces.
- Polyurethane wheels for smooth operation and durability.
- Equipped with safety-focused controls including horn, emergency reverse switch, magnetic brake, and lift controls on the tiller handle.
- Travel speed up to approximately 4.3 km/h laden and 4.5 km/h unladen.
- Lowering speed approximately 0.11 m/s laden and 0.12 m/s unladen.
- Gradeability up to 6% laden and 10% unladen.
- Features DC speed control and an electromagnetic braking system.
- Includes safety systems such as lift height limitation and lifting speed limitation at higher fork heights.
- Includes safety systems such as lift height limitation and lifting speed limitation at higher fork heights.
- Built for short-distance cargo handling, pallet movement, and rack stacking tasks
- Suitable for use in ambient temperatures from +5°C to +45°C under standard operating conditions.
LEARN THIS PRODUCT SPECIFICATION DATA
Model
QES10MCB
Power Source
Electric
Operation Mode
Pedestrian
Load Capacity
1000kg
Load Centre Distance
500mm
Fork Overhang
101mm
Wheelbase
1175mm
Weight (inc. Battery)
1570kg
Wheel Type
Polyurethane Wheels
Driver Side Wheel Size
⌀210x75
Load Side Wheel Size
⌀160x73
Lowered Mast Height
2020mm
Lift Height
2940mm
Max Extended Height
3492mm
Height of Handle in Min/Max Drive Position
775/1200mm
Lowered Height
60mm
Overall Width
876mm
Overall Length
2500mm
Length to Fork Face
1435mm
Fork Dimensions
35 / 100 / 1070 mm
Distance between Fork Arms
200 - 620 mm
Travel Speed Laden/Unladen
4.03 - 4.51 km/h
Lift Speed Laden/Unladen
0.079 - 0.104 m/s
Lowering Speed Laden/Unladen
0.11 - 0.12 m/s
Max. Gradeability Laden/Unladen
6 - 10%
Service Brake
Electromagnetic brake
Drive Motor Rating min. S2 60
0.9 kW
Lift Motor Rating S3 10%
2.2 kW
Battery Voltage, Rated Capacity KS
2 × 12V / 120Ah
Battery Weight
2 × 33.5 kg
Drive Control Tvpe
DC speed control
Sound Level at Driver's Ear
70 dB(A)
SKU:
QES10MCB
1000kg Rated Long Handle Counterbalanced Electric Stacker
3.5m Extended Mast Height
3.5m Extended Mast Height
- Regular price
- $8,238.97
- Sale price
- $8,238.97
- Regular price
-
GST Excluded.
Shipping calculated at checkout.
Freight quote required
Packaging Reference
Packaging Information
Use this space for your delivery reference. The data are accurate with our current stock holdings ONLY. What we receive can vary between approx. 0.5-5% difference in measurements.
2.7 m x 0.9 m x 2.1 m
, 2000 kg
Packaging Information
Use this space for your delivery reference. The data are accurate with our current stock holdings ONLY. What we receive can vary between approx. 0.5-5% difference in measurements.
Download Specs & Brochure
