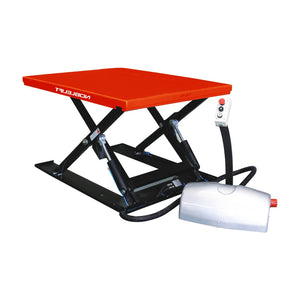

Low-level loading, powered positioning. MATEX HTFG pairs an 82mm lowered deck and ramp with 240V single-phase lifting.

The Problem It Solves

  • Raising components repeatedly? Use powered height adjustment at the workstation.
  • Loading from floor level? The included ramp provides access to the low deck.
  • Need controls away from the platform? Operate through the remote power system.

Key Features

  • A 1000kg capacity handles heavy goods within the rated limit.

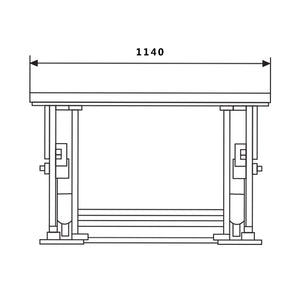

  • The 1450 x 1140mm deck gives bulky components room for positioning.
  • An 82-760mm range takes goods from low loading to working height.
  • The 0.75kW motor uses 240V single-phase supply.
  • Times of 18s up and 15s down help plan handling cycles.
  • UP, DOWN and emergency-stop buttons provide clear operating controls.
  • A remote power system is included for separate lift control.

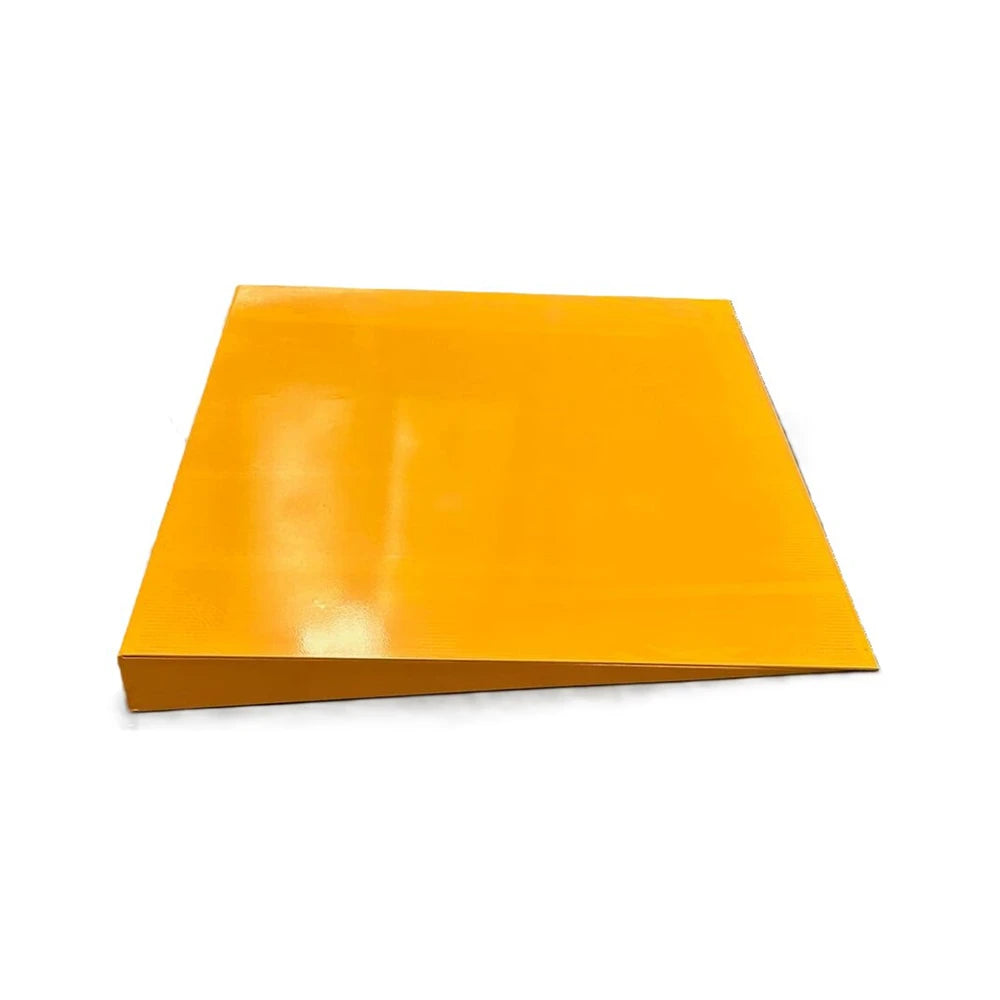

  • The 1140 x 890mm ramp assists loading onto the platform.
  • At 250kg, the unit needs planned handling and installation.
  • A 1-year warranty is included.

Related Options

MATEX HTFG-3PHASE suits a 415V three-phase supply. MATEX TG100 offers 1000kg manual lifting where power is unavailable.

Where It's Used

  • Warehouses - raise cartons for easier access while packing and sorting.
  • Production lines - position components within reach for assembly work.
  • Maintenance bays - lift heavy parts for closer inspection and servicing.
  • Support across Australia's major cities, including Melbourne, Sydney, Brisbane, Adelaide, and Perth.

Equipping multiple sites? Get in touch for a bulk quote.

LEARN THIS PRODUCT SPECIFICATION DATA

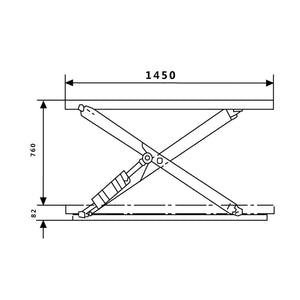

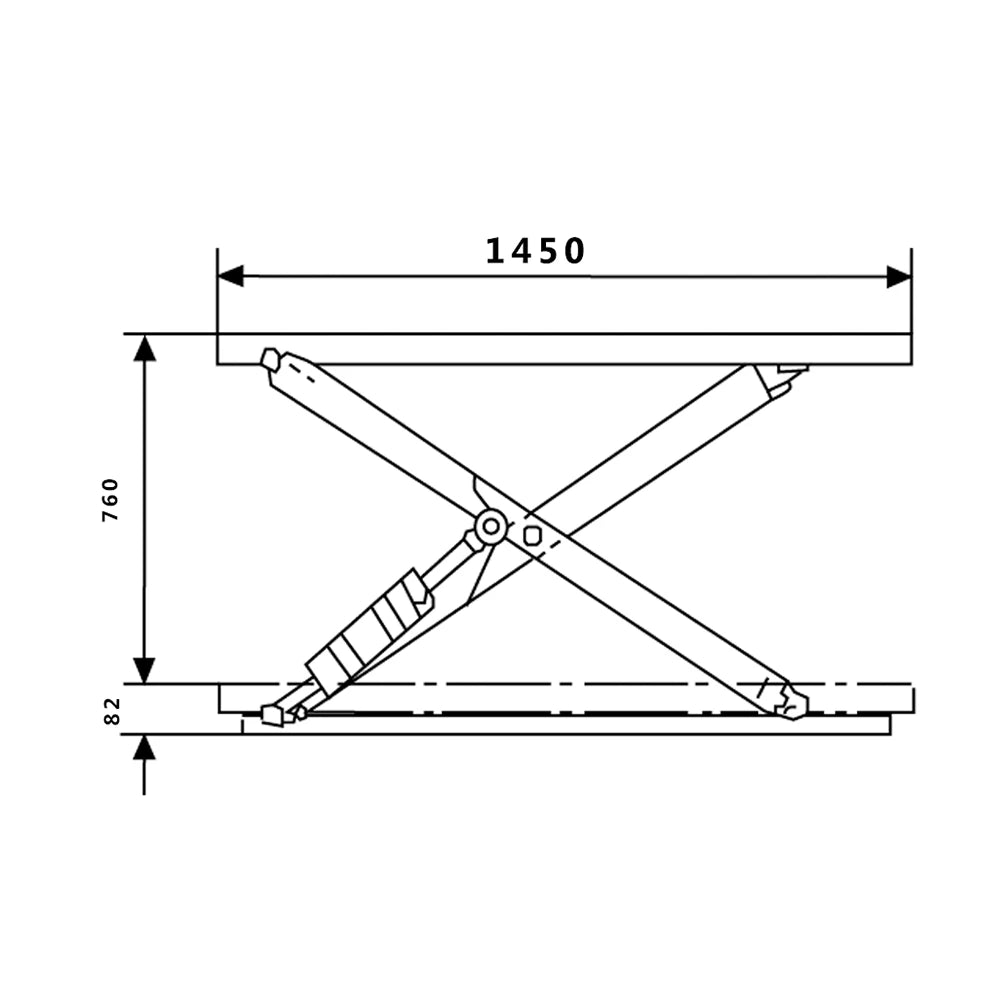

Model HTFG
Capacity 1000kg
Lowered height 82mm
Raised Height 760mm
Platform Size 1450 x 1140 x 585mm
Lifting Speed 18s
Lower Speed 15s
Motor 0.75Kw/Single Phase
Voltage 240V
Weight 250kg
Warranty 1 Year
LEARN THIS PRODUCT SPECIFICATION DATA

Low-level loading, powered positioning. MATEX HTFG pairs an 82mm lowered deck and ramp with 240V single-phase lifting.

The Problem It Solves

  • Raising components repeatedly? Use powered height adjustment at the workstation.
  • Loading from floor level? The included ramp provides access to the low deck.
  • Need controls away from the platform? Operate through the remote power system.

Key Features

  • A 1000kg capacity handles heavy goods within the rated limit.
  • The 1450 x 1140mm deck gives bulky components room for positioning.
  • An 82-760mm range takes goods from low loading to working height.
  • The 0.75kW motor uses 240V single-phase supply.
  • Times of 18s up and 15s down help plan handling cycles.
  • UP, DOWN and emergency-stop buttons provide clear operating controls.
  • A remote power system is included for separate lift control.
  • The 1140 x 890mm ramp assists loading onto the platform.
  • At 250kg, the unit needs planned handling and installation.
  • A 1-year warranty is included.

Related Options

MATEX HTFG-3PHASE suits a 415V three-phase supply. MATEX TG100 offers 1000kg manual lifting where power is unavailable.

Where It's Used

  • Warehouses - raise cartons for easier access while packing and sorting.
  • Production lines - position components within reach for assembly work.
  • Maintenance bays - lift heavy parts for closer inspection and servicing.
  • Support across Australia's major cities, including Melbourne, Sydney, Brisbane, Adelaide, and Perth.

Equipping multiple sites? Get in touch for a bulk quote.

Learn what makes this product unique and why it’s right for you.
Model HTFG
Capacity 1000kg
Lowered height 82mm
Raised Height 760mm
Platform Size 1450 x 1140 x 585mm
Lifting Speed 18s
Lower Speed 15s
Motor 0.75Kw/Single Phase
Voltage 240V
Weight 250kg
Warranty 1 Year
