Heavy, bulky loads? Move and organise more with less manual effort

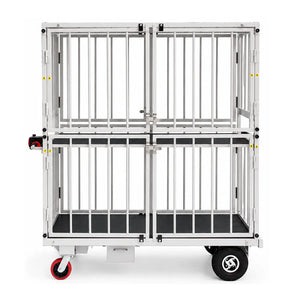

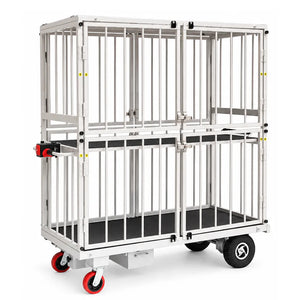

The MATEX HG-1105 Powered Double Cage Trolley combines battery-powered drive assistance with a large two-level enclosed cage, making regular high-volume workplace transport easier to manage.

The Problem It Solves

• Repeated heavy pushing and pulling: powered assistance reduces the physical effort associated with moving loaded manual carts.
• High-volume and mixed loads: separate upper and lower cage sections with two solid internal platforms help organise cartons, equipment, materials and other workplace goods for easier access.
• Loose items shifting or falling: surrounding fences and cage doors help keep goods contained during movement.
• Difficult loaded manoeuvring: powered driving wheels, turning castors and adjustable speed control help operators navigate aisles, loading areas and other indoor work areas.

Key Features

• 300kg maximum load capacity: handles substantial workplace loads with powered mobility.
• Four front cage doors: separate upper and lower access makes loading, unloading and organising easier.
• 24V 400W drive motor and 2 x 12V 42Ah batteries: power the trolley's 24V electrical system for regular workplace operation.
• Adjustable 0-6km/h travel speed: the speed regulator lets operators increase or decrease speed to suit workplace conditions.
• Approximately 6 hours continuous operation: supports extended material-handling tasks between charges.
• Approximately 7-8 hours charging time: suits between-shift or overnight recharging.
• 24V/4A charger: supplied charging system is specified with UL or CE certification.
• Up to 5° climbing capability: assists travel on suitable gradual inclines.
• 1500 mm turning radius: supports controlled manoeuvrability around work areas.
• 2 x 152.4 mm turning castors and 2 x 254 mm driving wheels: combine manoeuvrable steering with powered propulsion.
• Curtis 24V/70A controller and Curtis throttle: integrate drive control with forward and reverse movement for positioning and manoeuvring.
• Battery level indicator: shows remaining charge; a working indicator LED provides operating status information.
• Key switch and emergency stop: provide operating control and allow the operator to stop the trolley immediately in an emergency.
• Warning horn and front light: help alert nearby personnel and provide additional visibility in poorly illuminated areas.
• Accessible integrated controls: keep the main driving functions within easy reach.
• Manual movement function: allows short-distance manual movement. The transaxle clutch also enables manual movement if power is unavailable or depleted.
• Powder-coated finish: provides a durable surface treatment for regular workplace use.

Product Dimensions

• Overall size: 1600 mm x 700 mm x 1900 mm.
• Platform height: 325 mm.

Where It's Used

For regular movement of high-volume goods between work areas in warehouses, logistics facilities, manufacturing environments and other workplaces in Australia.
