Description

Learn what makes this product unique and why it’s right for you.
  • Blue Wicke-ELASTIC® Solid tyre on a black polymide wheel centre.
  • Designed to support loads up to 140kg, suitable for heavy-duty applications.
  • Ideal for use on heavy-duty carts, trolleys, and industrial machinery in both commercial and industrial environments.
  • Suitable for applications such as shipping carts, material handling equipment, and workstations that require robust support and stability.
  • Provides smooth and quiet operation, effectively minimizing noise levels and protecting floors from potential damage during use.
  • Features a swivel design that enhances maneuverability and allows for ease of movement in all directions, improving overall accessibility.
  • Includes a reliable brake mechanism that secures the castor in place, effectively preventing unwanted movement and ensuring stability during use.
  • Wheel diameter of 100mm, ideal for handling medium-sized equipment and furniture.
  • Made from high-quality blue Wicke-ELASTIC® rubber with 63 Shore A hardness, offering high elasticity and excellent driving comfort.
  • Provides good rolling resistance and excellent damping characteristics even at relatively high capacities.
  • Non-marking and not contact-discoloring, protecting floors from scuffs and maintaining a clean appearance.
  • Fixed fork made from galvanized sheet steel with a bolted wheel axle for durability.
  • Steel swivel forks with top plate, featuring a swivel head with a double ball race sealed to protect against dust and dirt.
  • The top plate with four bolt holes is directly riveted to the fork to ensure smooth movement with minimal tolerances in the swivel head.
  • Top plate with four bolt holes riveted to the fork for smooth movement with minimal tolerances in the swivel head.
  • Wheels are fitted with roller bearings for enhanced performance and longevity.

Performance

Starting Resistance Good
Rolling resistance Good
Road noise Optimal
Wear Good
LEARN THIS PRODUCT SPECIFICATION DATA
Model TWBR100SB
Frame Type Swivel Castor with Brake
Wheel Material Elastic-Vollgummi blau
Offset 38mm
Wheel Diameter 100mm
Plate Size 105 x 80mm
Tyre Width 36mm
Mounting Hole 9mm
Mounting Hole 80/76 x 60mm
Height 125mm
Load Capacity 180kg
Learn what makes this product unique and why it’s right for you.
  • Blue Wicke-ELASTIC® Solid tyre on a black polymide wheel centre.
  • Designed to support loads up to 140kg, suitable for heavy-duty applications.
  • Ideal for use on heavy-duty carts, trolleys, and industrial machinery in both commercial and industrial environments.
  • Suitable for applications such as shipping carts, material handling equipment, and workstations that require robust support and stability.
  • Provides smooth and quiet operation, effectively minimizing noise levels and protecting floors from potential damage during use.
  • Features a swivel design that enhances maneuverability and allows for ease of movement in all directions, improving overall accessibility.
  • Includes a reliable brake mechanism that secures the castor in place, effectively preventing unwanted movement and ensuring stability during use.
  • Wheel diameter of 100mm, ideal for handling medium-sized equipment and furniture.
  • Made from high-quality blue Wicke-ELASTIC® rubber with 63 Shore A hardness, offering high elasticity and excellent driving comfort.
  • Provides good rolling resistance and excellent damping characteristics even at relatively high capacities.
  • Non-marking and not contact-discoloring, protecting floors from scuffs and maintaining a clean appearance.
  • Fixed fork made from galvanized sheet steel with a bolted wheel axle for durability.
  • Steel swivel forks with top plate, featuring a swivel head with a double ball race sealed to protect against dust and dirt.
  • The top plate with four bolt holes is directly riveted to the fork to ensure smooth movement with minimal tolerances in the swivel head.
  • Top plate with four bolt holes riveted to the fork for smooth movement with minimal tolerances in the swivel head.
  • Wheels are fitted with roller bearings for enhanced performance and longevity.

Performance

Starting Resistance Good
Rolling resistance Good
Road noise Optimal
Wear Good
LEARN THIS PRODUCT SPECIFICATION DATA
Model TWBR100SB
Frame Type Swivel Castor with Brake
Wheel Material Elastic-Vollgummi blau
Offset 38mm
Wheel Diameter 100mm
Plate Size 105 x 80mm
Tyre Width 36mm
Mounting Hole 9mm
Mounting Hole 80/76 x 60mm
Height 125mm
Load Capacity 180kg
Custom Design
Handling Solutions Built for Your Needs.

Share:

SKU:

TWBR100SB

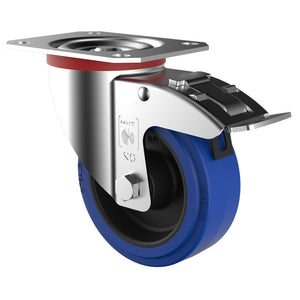

140kg Rated Blue Rubber Castor - 100mm - Swivel With Brake

Plate : 105 x 80mm
Plate : 105 x 80mm
$29.05
$29.05
GST Excluded. Shipping calculated at checkout.
360 in Stock Now
Looking for larger quantities? Let us know.
