Description

Learn what makes this product unique and why it’s right for you.

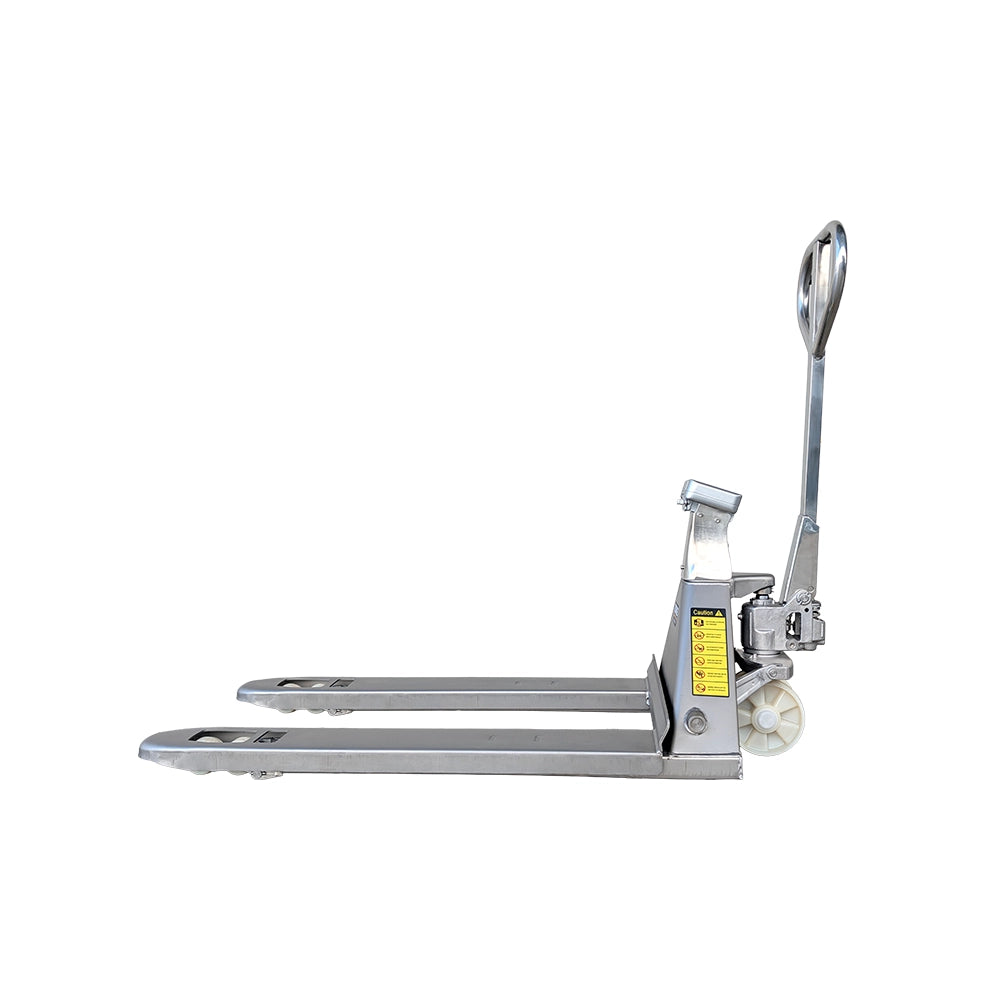

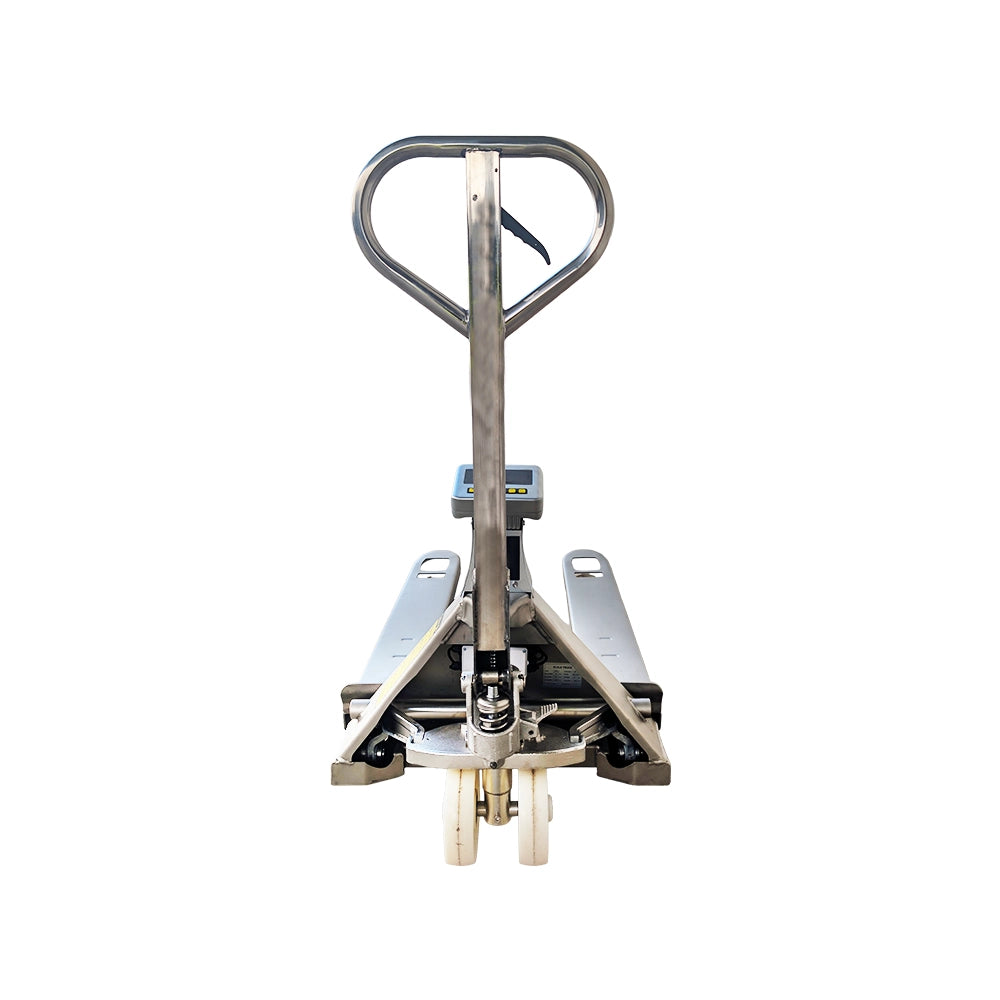

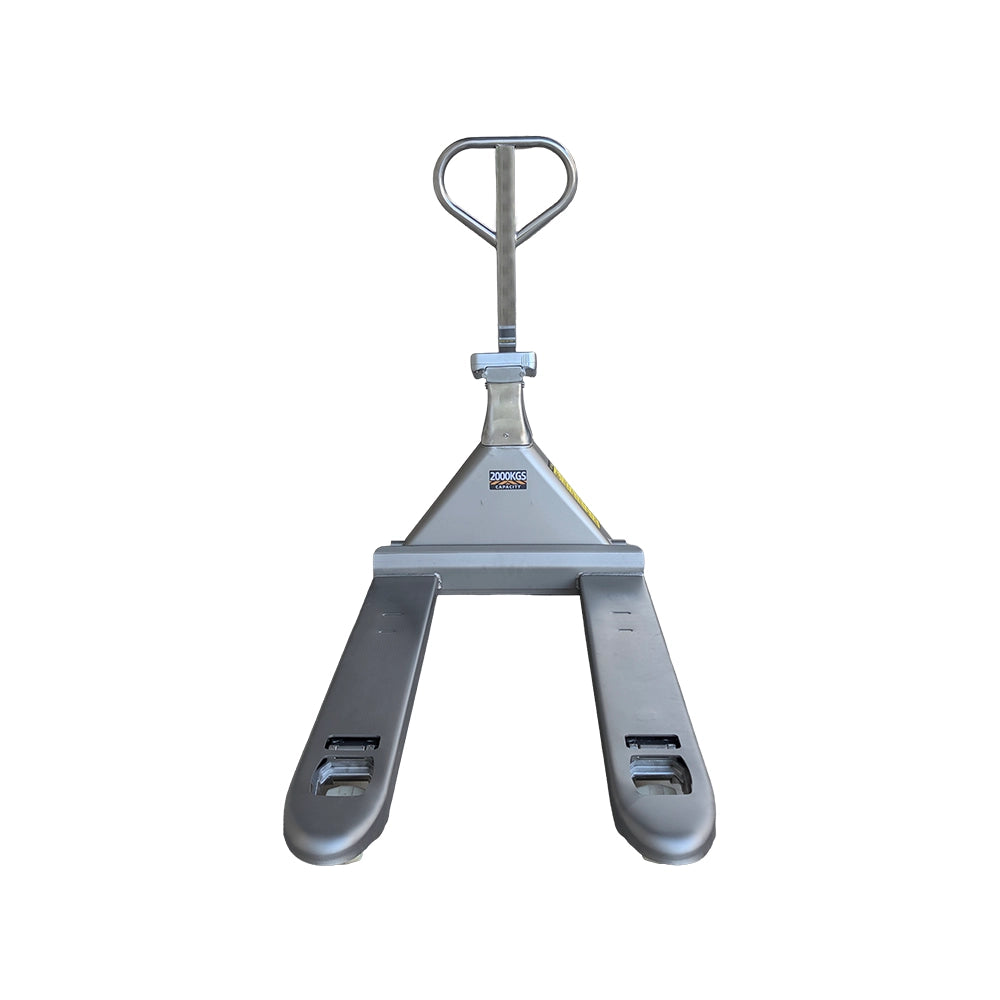

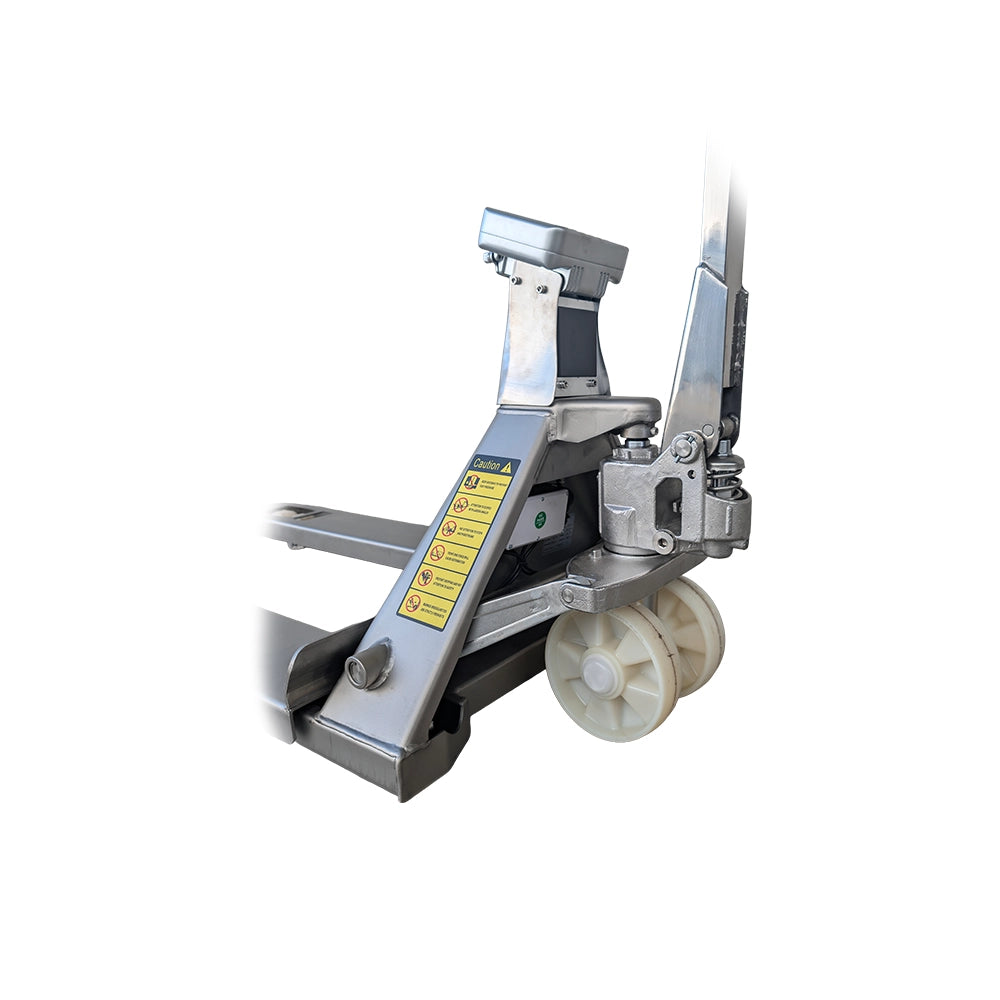

  • Stainless steel pallet truck with integrated digital weighing scale
  • 2000kg nominal load capacity for heavy-duty pallet handling
  • 1150mm fork length with 690mm overall fork width
  • 165mm single fork width for stable pallet support
  • Minimum fork height of 82mm ±2mm for easy pallet entry
  • 105mm lifting height with 120mm total lifting height
  • Fitted with Ø180 x 50mm large steering wheels
  • Fitted with Ø80 x 70mm small load wheels

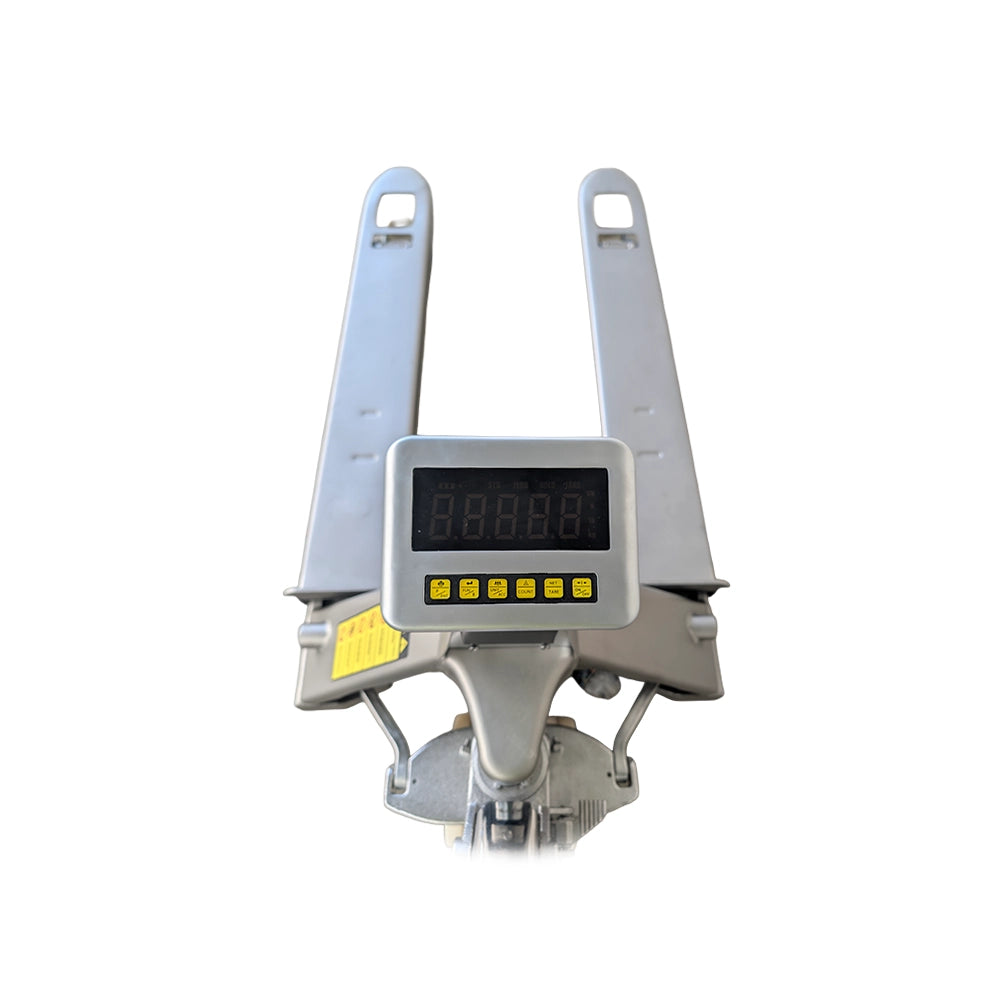

  • Integrated digital weighing scale with Class III scale accuracy
  • Digital scale supports kg and lb weighing units
  • Includes zero, tare, count, accumulation, hold, and function key controls
  • Rechargeable scale system with approximately 72 hours working time
  • Approximate charging duration of 6 to 8 hours
  • Suitable operating temperature range of -10°C to 40°C
  • Suitable for warehouses, factories, food processing areas, and hygiene-sensitive applications
LEARN THIS PRODUCT SPECIFICATION DATA
Model ACS20S-685
Capacity 2000kg
Fork minimum height 82mm ±2mm
Lifting height 105mm
Total lifting height 120mm
Fork width 165mm Single Fork Width
Width overall forks 690mm
Fork length 1150mm
Steering wheel Ø180 × 50mm
Load roller Ø80 × 70mm
Wheelbase 1220mm
Net weight 95-100kg
Scale accuracy Class III
Weighing units kg / lb
Scale functions Zero, Tare, Count, Accumulation, Hold, Function
Working time Approx. 72 Hours
Charging time Approx. 6 -8 Hours
Operating temperature -10°C to 40°C
Operating humidity Relative humidity ≤85%
Learn what makes this product unique and why it’s right for you.
  • Stainless steel pallet truck with integrated digital weighing scale
  • 2000kg nominal load capacity for heavy-duty pallet handling
  • 1150mm fork length with 690mm overall fork width
  • 165mm single fork width for stable pallet support
  • Minimum fork height of 82mm ±2mm for easy pallet entry
  • 105mm lifting height with 120mm total lifting height
  • Fitted with Ø180 x 50mm large steering wheels
  • Fitted with Ø80 x 70mm small load wheels
  • Integrated digital weighing scale with Class III scale accuracy
  • Digital scale supports kg and lb weighing units
  • Includes zero, tare, count, accumulation, hold, and function key controls
  • Rechargeable scale system with approximately 72 hours working time
  • Approximate charging duration of 6 to 8 hours
  • Suitable operating temperature range of -10°C to 40°C
  • Suitable for warehouses, factories, food processing areas, and hygiene-sensitive applications
LEARN THIS PRODUCT SPECIFICATION DATA
Model ACS20S-685
Capacity 2000kg
Fork minimum height 82mm ±2mm
Lifting height 105mm
Total lifting height 120mm
Fork width 165mm Single Fork Width
Width overall forks 690mm
Fork length 1150mm
Steering wheel Ø180 × 50mm
Load roller Ø80 × 70mm
Wheelbase 1220mm
Net weight 95-100kg
Scale accuracy Class III
Weighing units kg / lb
Scale functions Zero, Tare, Count, Accumulation, Hold, Function
Working time Approx. 72 Hours
Charging time Approx. 6 -8 Hours
Operating temperature -10°C to 40°C
Operating humidity Relative humidity ≤85%
Custom Design
Handling Solutions Built for Your Needs.

Share:

SKU:

ACS20S-685

2T Rated Stainless Steel Scale Pallet Truck

Comes with Digital Weighing Scale
Comes with Digital Weighing Scale
$5,999.00
$5,999.00
GST Excluded. Shipping calculated at checkout.
Limited stock. Contact us to confirm before purchase.
Looking for larger quantities? Let us know.

Seeing “Low Stock” or “Out of Stock”?

No worries! Let us know, we will do our best to arrange a stock transfer for you. We’re happy to help.

Free Shipping - Eligible Metro Areas

For Online Metro Oders over $499!
