Spring-Loaded Pallet Leveller That Automatically Maintains Working Height

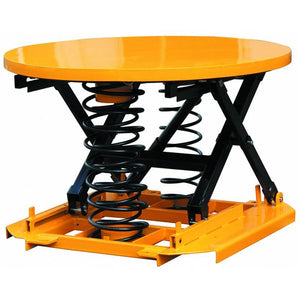

The 2000kg Spring Actuated Pallet Leveller (PLG1C) by Matex automatically keeps pallet and stillage loads at an optimum working height as goods are added or removed. No manual adjustment required. The spring mechanism responds to load changes continuously, reducing worker strain and dramatically improving palletising efficiency. Built-in turntable allows easy rotation for access to all sides of the load without repositioning.

Key Features

• 2000kg load capacity. Handles heavy pallet and stillage loads reliably in industrial environments.
• Spring actuated automatic height adjustment. Continuously maintains the load at an optimum working height as goods are added or removed. No manual operation required.
• Built-in low-friction bearing-supported turntable. Smooth load rotation for easy access to all sides without repositioning the pallet or the operator.
• Scissor-type lifting mechanism. Stable, reliable lifting and lowering action under heavy loads.
• 240mm to 705mm platform height range. Suits a wide range of working heights and operator preferences.
• 1110mm closed platform size. Accommodates standard pallets and stillages.
• 920 x 930mm basement footprint. Compact base for installation in existing workspaces.
• No ground fixing required. Easy installation and repositioning without structural modifications.
• 1-year warranty.

Also Available

Also available as the 2000kg Pallet Leveller and Positioner and the 2000kg Electric Pallet Leveller for powered operation.

Where It's Used

Warehouses, distribution centres, manufacturing facilities, and any environment where pallets or stillages need to be loaded and unloaded efficiently at a consistent working height.
