Description
Learn what makes this product unique and why it’s right for you.
- Supports loads up to 200kg, ideal for medium to heavy-duty applications.
- Swivel design with a brake for enhanced maneuverability and safety when stationary.
- Wheel diameter of 100mm, suitable for various equipment and machinery.
- Constructed from high-quality Polyamide PA 6 in a natural color (white), providing excellent impact resistance and longevity.
- Zinc swivel forks with a top plate made of material quality 1.4301 for added durability.
- Sealed swivel head features a double ball race to protect against dust and dirt, ensuring reliable performance.
- The top plate includes four bolt holes directly riveted to the fork, ensuring smooth movement with minimal tolerances in the swivel head.
- Suitable for applications in a temperature range of -40° to +90°C, making it versatile for different environments.
- Provides smooth operation, minimizing noise during use.
- Perfect for use on carts, trolleys, and other equipment requiring dependable mobility.
- Most suitable for use in warehouses, workshops, and retail environments.
Performance
| Starting Resistance |
 Optimal
|
| Rolling Resistance |
Optimal
|
| Driving noise |
 Basic
|
| Abrasion |
 Good
|
DATA SHEET
| Model | TWPP100S |
| Frame Type | Swivel Plate with Brake |
| Wheel Material | Polyamide |
| Wheel Diameter | 100mm |
| Plate Size | 105 x 80mm |
| Tyre Width | 38mm |
| Mounting Hole | 9mm |
| Mounting Hole | 80/76 x 60mm |
| Height | 125mm |
| Load Capacity | 200kg |
| Offset | 38mm |
| Front and Back Stop | Frontstop |
Learn what makes this product unique and why it’s right for you.
- Supports loads up to 200kg, ideal for medium to heavy-duty applications.
- Swivel design with a brake for enhanced maneuverability and safety when stationary.
- Wheel diameter of 100mm, suitable for various equipment and machinery.
- Constructed from high-quality Polyamide PA 6 in a natural color (white), providing excellent impact resistance and longevity.
- Zinc swivel forks with a top plate made of material quality 1.4301 for added durability.
- Sealed swivel head features a double ball race to protect against dust and dirt, ensuring reliable performance.
- The top plate includes four bolt holes directly riveted to the fork, ensuring smooth movement with minimal tolerances in the swivel head.
- Suitable for applications in a temperature range of -40° to +90°C, making it versatile for different environments.
- Provides smooth operation, minimizing noise during use.
- Perfect for use on carts, trolleys, and other equipment requiring dependable mobility.
- Most suitable for use in warehouses, workshops, and retail environments.
Performance
| Starting Resistance |
Optimal
|
| Rolling Resistance |
Optimal
|
| Driving noise |
Basic
|
| Abrasion |
Good
|
DATA SHEET
| Model | TWPP100S |
| Frame Type | Swivel Plate with Brake |
| Wheel Material | Polyamide |
| Wheel Diameter | 100mm |
| Plate Size | 105 x 80mm |
| Tyre Width | 38mm |
| Mounting Hole | 9mm |
| Mounting Hole | 80/76 x 60mm |
| Height | 125mm |
| Load Capacity | 200kg |
| Offset | 38mm |
| Front and Back Stop | Frontstop |
SKU:
TWPP100SB

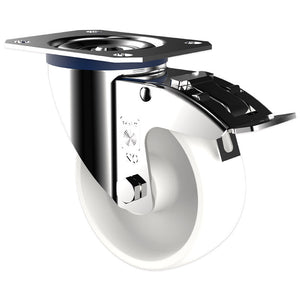

200kg Rated White Polyamid Castor - 100mm - Swivel with Brake
Plate : 105 x 80mm
Plate : 105 x 80mm
- Regular price
- $28.20
- Sale price
- $28.20
- Regular price
-
GST Excluded.
Shipping calculated at checkout.
