Description
LEARN THIS PRODUCT SPECIFICATION DATA
Heavy pallet handling? Stack higher with less effort

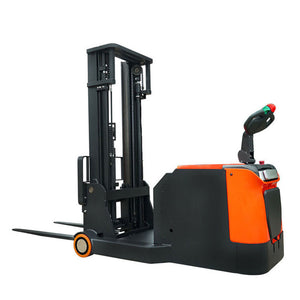

The MATEX PS16CB-45 electric counterbalanced stacker combines 1600 kg rated capacity with a 4.5 m lift height to streamline warehouse pallet handling.
The Problem It Solves
- Awkward load placement: proportional hydraulics help position loads precisely during lifting and lowering.
- Repeated steering effort: electric power steering makes manoeuvring easier.
- Long warehouse runs: the installed ride-on platform reduces walking between handling points.
Key Features
- Three-stage mast with 1500 mm free lift supports staged lifting.
- 24 V/200 Ah lithium battery and supplied charger provide electric power.

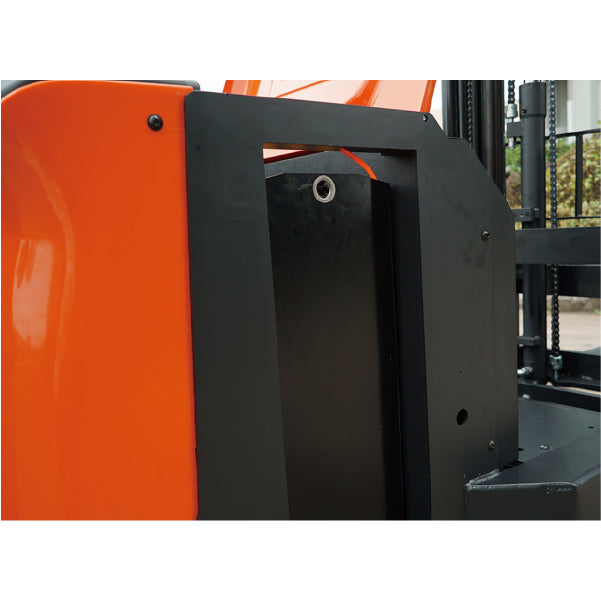

- Side battery extraction improves access for battery replacement.

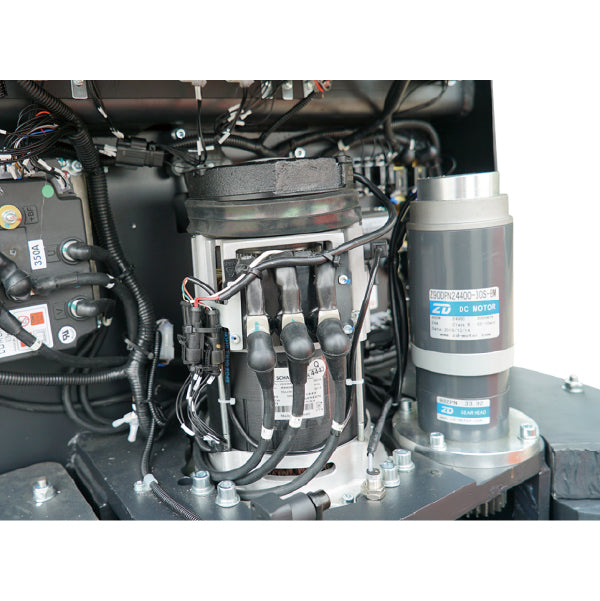

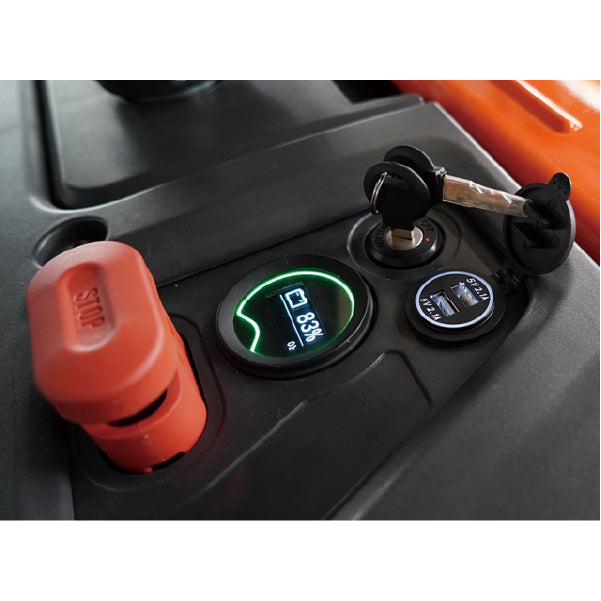

- ZAPI controller, discharge indicator and hour meter help manage operation and monitor use.

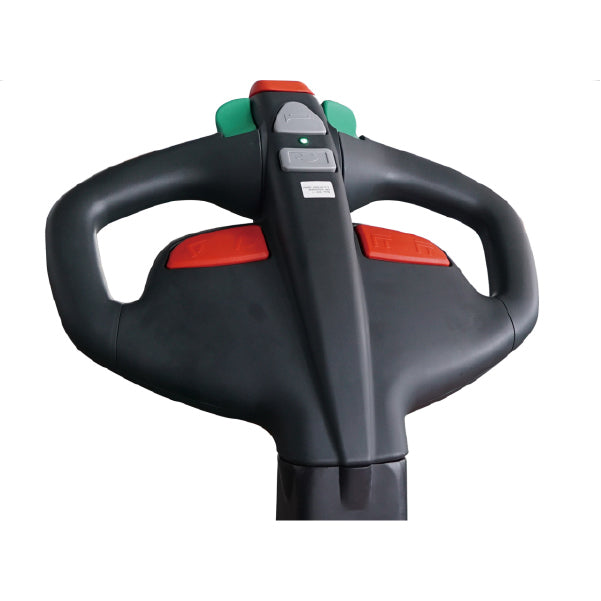

- Emergency disconnect, horn, belly button and dual thumb controls keep operating functions within reach.
Related Equipment
For lighter tasks, consider the 120 kg Mini Winch Stacker.
Where It's Used
Warehouses, stockrooms and dispatch areas moving and stacking palletised goods in Australia.
LEARN THIS PRODUCT SPECIFICATION DATA
Model
PS16CB-45
Rated Capacity
1600 kg
Power Source
Electric
Driving Method
Pedestrian/standing
Mast Stages
3
Load Centre Distance
500 mm
Load Wheel
230 x 100 mm
Front Overhang
150 mm
Wheelbase
1450 mm
Lowered Mast Height
2108 mm
Free Lift Height
1500 mm
Lift Height
4500 mm
Lowered Height
60 mm
Overall Length
2790 mm
Overall Width
1090 mm
Fork Dimensions (As Supplied)
35/100/950 mm
Fork Length (Separate Data-Sheet Row)
915 mm
Turning Radius
1705 mm
Travel Speed - Laden/Unladen (Primary Row)
7 km/h laden; 8 km/h unladen
Lift Speed - Laden/Unladen
120 mm/s laden; 200 mm/s unladen
Lowering Speed - Laden/Unladen
300 mm/s laden; 200 mm/s unladen
Maximum Gradeability - Laden/Unladen
6% laden; 15% unladen
Battery and Charger (As Supplied)
24 V/200 Ah lithium battery and 24 V/80 Ah charger
Travel Speed (Conflicting Data-Sheet Row)
7 km/h unloaded; 8 km/h fully loaded (conflicts with primary row)
Service Brake
Electromagnetic
LEARN THIS PRODUCT SPECIFICATION DATA
Heavy pallet handling? Stack higher with less effort
The MATEX PS16CB-45 electric counterbalanced stacker combines 1600 kg rated capacity with a 4.5 m lift height to streamline warehouse pallet handling.
The Problem It Solves
- Awkward load placement: proportional hydraulics help position loads precisely during lifting and lowering.
- Repeated steering effort: electric power steering makes manoeuvring easier.
- Long warehouse runs: the installed ride-on platform reduces walking between handling points.
Key Features
- Three-stage mast with 1500 mm free lift supports staged lifting.
- 24 V/200 Ah lithium battery and supplied charger provide electric power.
- Side battery extraction improves access for battery replacement.
- ZAPI controller, discharge indicator and hour meter help manage operation and monitor use.
- Emergency disconnect, horn, belly button and dual thumb controls keep operating functions within reach.
Related Equipment
For lighter tasks, consider the 120 kg Mini Winch Stacker.
Where It's Used
Warehouses, stockrooms and dispatch areas moving and stacking palletised goods in Australia.
Learn what makes this product unique and why it’s right for you.
Model
PS16CB-45
Rated Capacity
1600 kg
Power Source
Electric
Driving Method
Pedestrian/standing
Mast Stages
3
Load Centre Distance
500 mm
Load Wheel
230 x 100 mm
Front Overhang
150 mm
Wheelbase
1450 mm
Lowered Mast Height
2108 mm
Free Lift Height
1500 mm
Lift Height
4500 mm
Lowered Height
60 mm
Overall Length
2790 mm
Overall Width
1090 mm
Fork Dimensions (As Supplied)
35/100/950 mm
Fork Length (Separate Data-Sheet Row)
915 mm
Turning Radius
1705 mm
Travel Speed - Laden/Unladen (Primary Row)
7 km/h laden; 8 km/h unladen
Lift Speed - Laden/Unladen
120 mm/s laden; 200 mm/s unladen
Lowering Speed - Laden/Unladen
300 mm/s laden; 200 mm/s unladen
Maximum Gradeability - Laden/Unladen
6% laden; 15% unladen
Battery and Charger (As Supplied)
24 V/200 Ah lithium battery and 24 V/80 Ah charger
Travel Speed (Conflicting Data-Sheet Row)
7 km/h unloaded; 8 km/h fully loaded (conflicts with primary row)
Service Brake
Electromagnetic
SKU:
PS16CB-45
4.5m Lift Height - Electric Counterbalanced Lithium Power Stacker 1600KG
Lithium Power
Lithium Power
- Regular price
- $17,999.00
- Sale price
- $17,999.00
- Regular price
-
$17,999.00
GST Excluded.
