  • Faster+ High efficiency with German motor! Upgraded speed of 8km/h for Ride-on Mode.
  • High-performance AC drive system, combined with electric steering unit to enhance whole vehicle's performance and efficiency.
  • Compact structure with excellent forward function, vehicles in a narrow space can be used.
  • With high-quality components, excellent cost performance.
  • IT the vehicle is used in warehousing long-distance transporting, optionally foldable pedal is the best choice.
  • 4500mm - Triple stage masts FFL.
  • Come with a 24V/200Ah Lithium Battery and a 24V/80Ah Charger.
  • Platform and safeguard are installed to ensure you work safe and effortless.
  • Featured the side shift function to help you transport horizontally quick and easy.
  • Straddle leg design, direct entry of 800x1220mm pallet with an upgraded design of the straddle 880mm inner width.
  • Emergency power disconnect.
  • The Ergonomic control handle is equipped with a horn button and belly button.



DATA SHEET

Model PS13RM-45
Capacity 1300kg
Mast Height 4500mm
Lower Height 2096mm
Free Lift Height 1500mm
Extended Mast Height 5385mm
Fork Dimensions 35/100/920(1070)mm
Fork Length 1150mm
Mast Stages 3
Power Battery
Operator Type Pedestrian
Service Brake Electromagnetic
Battery 24V/200Ah LB and 24V/80Ah Charger
Travel Speed 8km/h (unloaded), 6km/h (fully loaded)
Turning Radius 1570mm
Drive Motor Rating 2.6kw
Learn what makes this product unique and why it’s right for you.
  • Faster+ High efficiency with German motor! Upgraded speed of 8km/h for Ride-on Mode.
  • High-performance AC drive system, combined with electric steering unit to enhance whole vehicle's performance and efficiency.
  • Compact structure with excellent forward function, vehicles in a narrow space can be used.
  • With high-quality components, excellent cost performance.
  • IT the vehicle is used in warehousing long-distance transporting, optionally foldable pedal is the best choice.
  • 4500mm - Triple stage masts FFL.
  • Come with a 24V/200Ah Lithium Battery and a 24V/80Ah Charger.
  • Platform and safeguard are installed to ensure you work safe and effortless.
  • Featured the side shift function to help you transport horizontally quick and easy.
  • Straddle leg design, direct entry of 800x1220mm pallet with an upgraded design of the straddle 880mm inner width.
  • Emergency power disconnect.
  • The Ergonomic control handle is equipped with a horn button and belly button.



DATA SHEET

Model PS13RM-45
Capacity 1300kg
Mast Height 4500mm
Lower Height 2096mm
Free Lift Height 1500mm
Extended Mast Height 5385mm
Fork Dimensions 35/100/920(1070)mm
Fork Length 1150mm
Mast Stages 3
Power Battery
Operator Type Pedestrian
Service Brake Electromagnetic
Battery 24V/200Ah LB and 24V/80Ah Charger
Travel Speed 8km/h (unloaded), 6km/h (fully loaded)
Turning Radius 1570mm
Drive Motor Rating 2.6kw
Custom Design
Handling Solutions Built for Your Needs.

Share:

SKU:

PS13RM-45

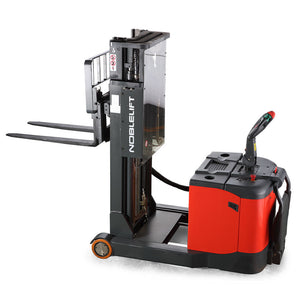

4.5m Lift Height - Electric Mast Reach Counterbalanced Lithium Power Stacker 1300KG

Lithium Power
Lithium Power
  • Quote Required
$23,000.00
$23,000.00
GST Excluded. Shipping calculated at checkout.
