Description

Learn what makes this product unique and why it’s right for you.
  • Safe, compact and ergonomic Long tiller design allows for efficient and safe operation.
  • Precise lifting and lowering with a fully-proportional hydraulic system.
  • Proportional lifting allows for efficient and safe lifting of any product at any lift speed.

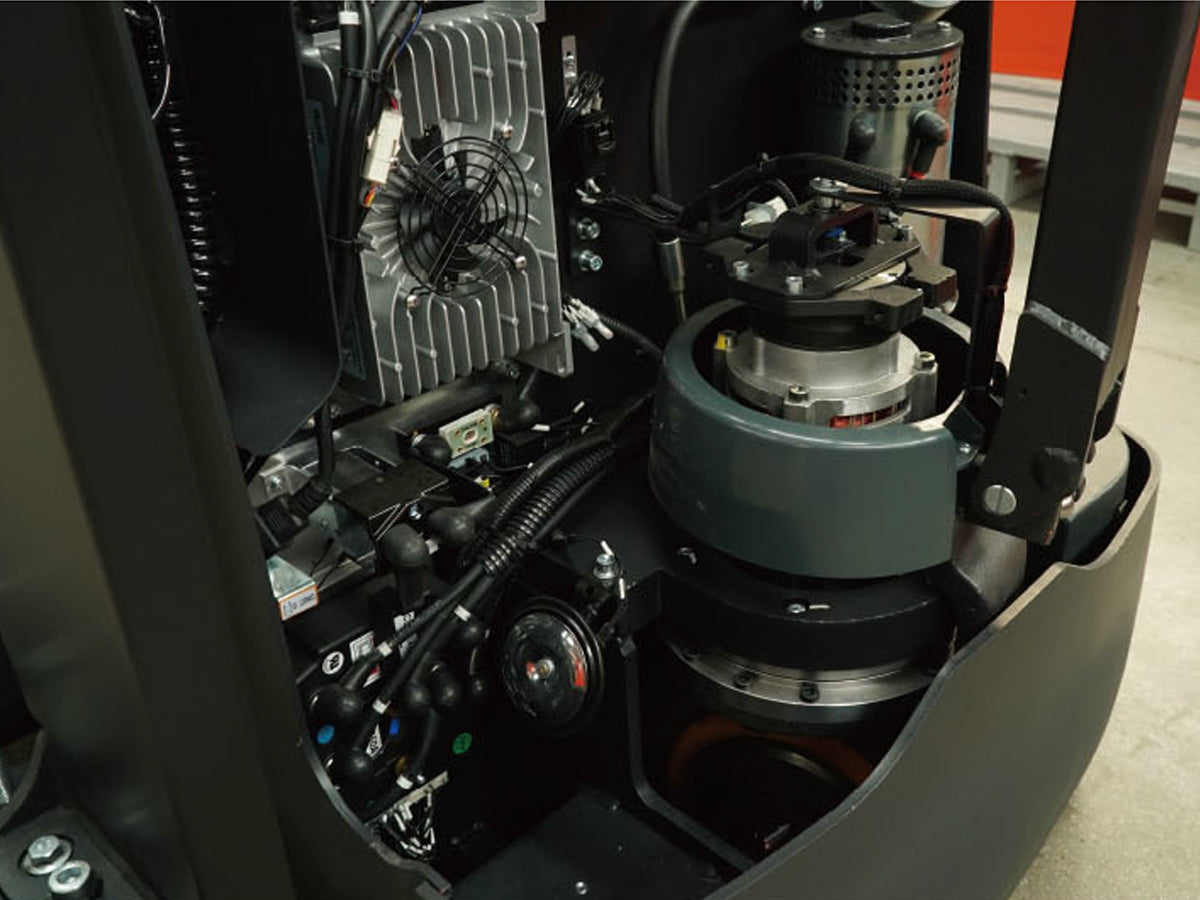

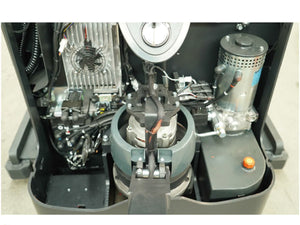

  • Powerful, maintenance-free German AC power train.
  • Core Components from Top Quality Brands.
  • 3 Wheel Structure for Stability.
  • 24V/270Ah industrial lithium battery and onboard charger.
  • Italian ZAPI Controller and Italian ZAPI battery discharge indicator with hour meter.
  • 4000mm - Triple stage masts FFL.
  • Adjustable base legs.
  • Load backrest installed.

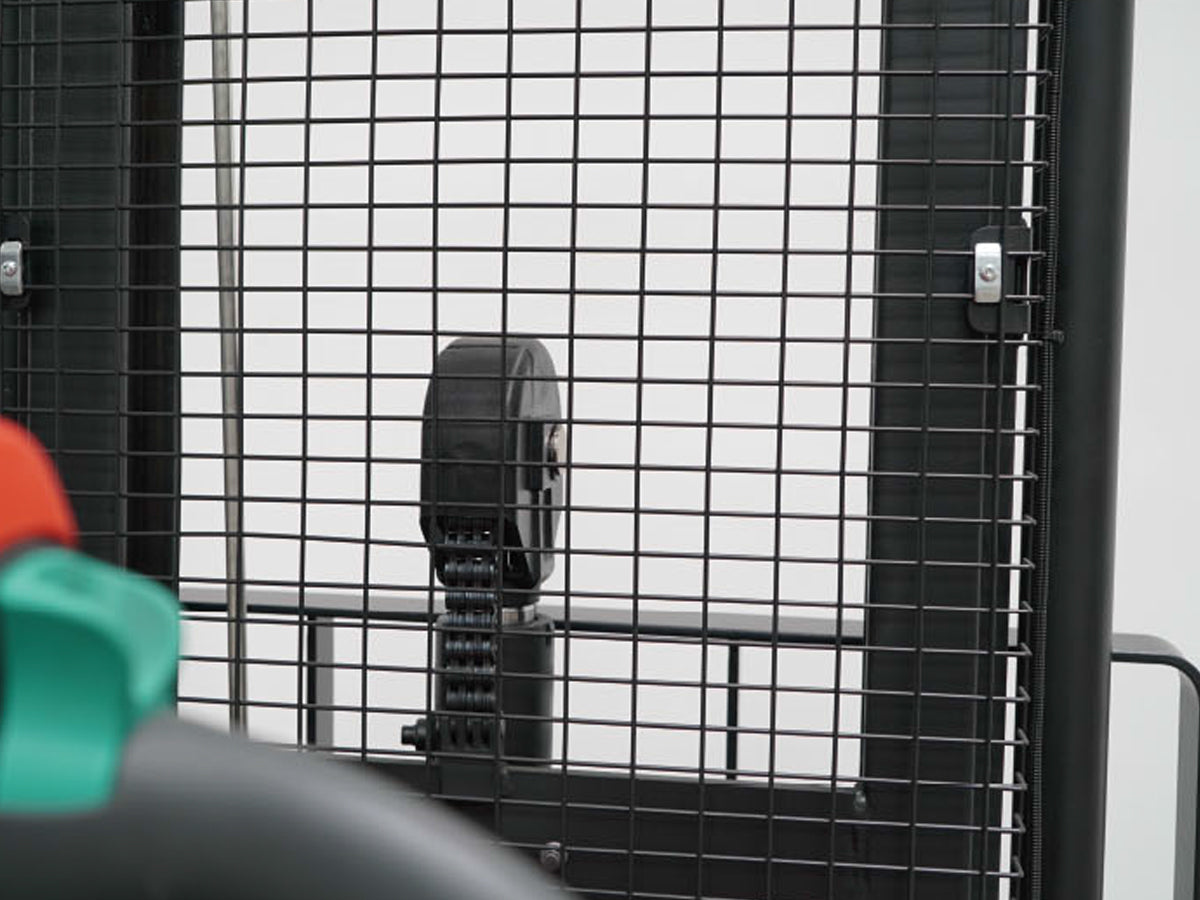

  • Plexiglass Operator protection.
  • Emergency power disconnect.
  • The ergonomic control handle is equipped with a horn and a belly button.
  • Dual butterfly-style thumb controls.
  • Crawl speed button for safe operation in tight space.
  • Key switch limits access to approved personnel.



DATA SHEET

Model PS16TSL-46
Capacity (kg) 1600kg
Mast Height 4600mm
Mast Stage 3
Lower Height 2108mm
Free Lift Height 1520mm
Extend Mast Height 4580mm

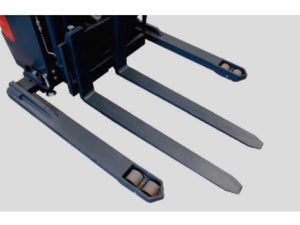

Fork Length 1150mm
Fork Size 40 x 120 x 1150mm
Adjustable Base Legs I.D. 965 - 1270mm
Adjustable Base Legs O.D. 1170 - 1470mm
Drive Tire 230 x 70mm polyurethane
Load Wheel 84 x 70mm polyurethane
Power Battery
Battery 24V/270Ah lithium battery and on-board charger
Travel Speed 6km/h (unloaded) and 5.4 km/h (fully loaded)
Operation Type Pedestrian
Service Brake Electromagnetic
Learn what makes this product unique and why it’s right for you.
  • Safe, compact and ergonomic Long tiller design allows for efficient and safe operation.
  • Precise lifting and lowering with a fully-proportional hydraulic system.
  • Proportional lifting allows for efficient and safe lifting of any product at any lift speed.
  • Powerful, maintenance-free German AC power train.
  • Core Components from Top Quality Brands.
  • 3 Wheel Structure for Stability.
  • 24V/270Ah industrial lithium battery and onboard charger.
  • Italian ZAPI Controller and Italian ZAPI battery discharge indicator with hour meter.
  • 4000mm - Triple stage masts FFL.
  • Adjustable base legs.
  • Load backrest installed.
  • Plexiglass Operator protection.
  • Emergency power disconnect.
  • The ergonomic control handle is equipped with a horn and a belly button.
  • Dual butterfly-style thumb controls.
  • Crawl speed button for safe operation in tight space.
  • Key switch limits access to approved personnel.



DATA SHEET

Model PS16TSL-46
Capacity (kg) 1600kg
Mast Height 4600mm
Mast Stage 3
Lower Height 2108mm
Free Lift Height 1520mm
Extend Mast Height 4580mm
Fork Length 1150mm
Fork Size 40 x 120 x 1150mm
Adjustable Base Legs I.D. 965 - 1270mm
Adjustable Base Legs O.D. 1170 - 1470mm
Drive Tire 230 x 70mm polyurethane
Load Wheel 84 x 70mm polyurethane
Power Battery
Battery 24V/270Ah lithium battery and on-board charger
Travel Speed 6km/h (unloaded) and 5.4 km/h (fully loaded)
Operation Type Pedestrian
Service Brake Electromagnetic
Custom Design
Handling Solutions Built for Your Needs.

Share:

SKU:

PS16TSL-46

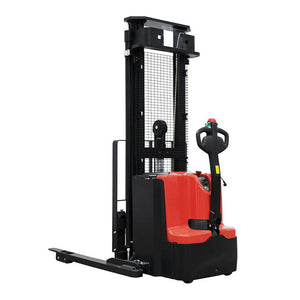

4.6m Lift Height - Electric Stacker Lithium Power Heavy Duty 1600kg

Fully-proportional hydraulic system
Fully-proportional hydraulic system
$12,999.00
$12,999.00
GST Excluded. Shipping calculated at checkout.
Limited stock. Contact us to confirm before purchase.
Looking for larger quantities? Let us know.

Seeing “Low Stock” or “Out of Stock”?

No worries! Let us know, we will do our best to arrange a stock transfer for you. We’re happy to help.

Free Shipping - Eligible Metro Areas

For All Online Purchases over $399!

Check Out These Related Products
