Need a Ready-to-Run Roller Conveyor Without the Hassle of Sourcing Frame, Rollers, and Stands Separately? This Combo Has It All

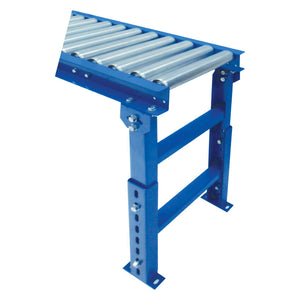

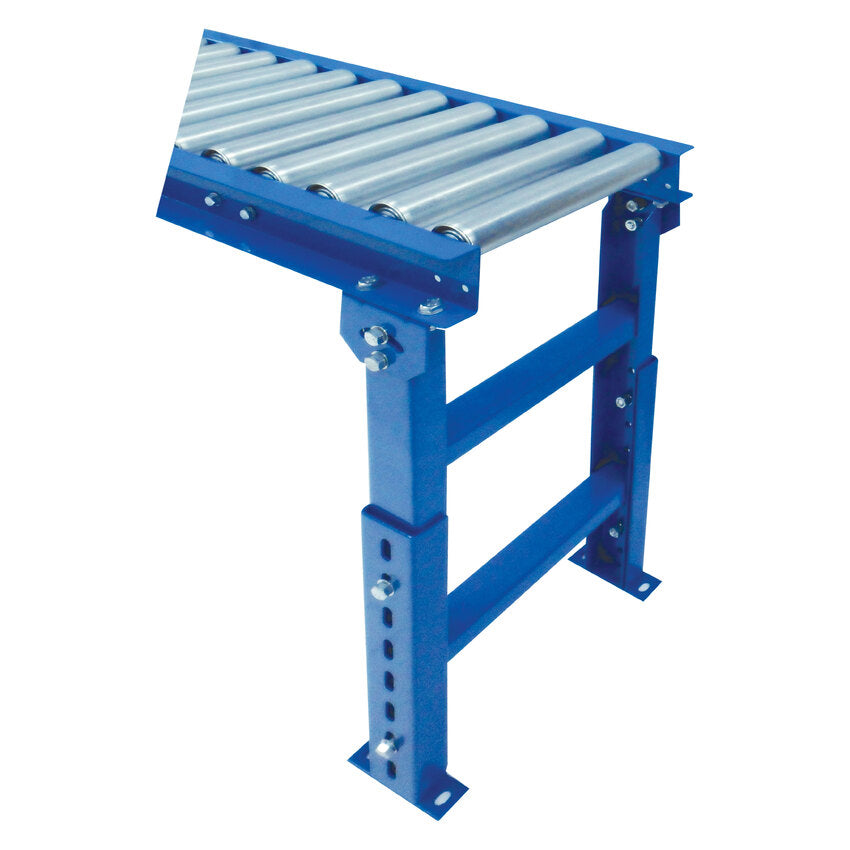

Building a roller conveyor from scratch means sourcing compatible frames, rollers, and stands - and hoping they all work together. The 450mm Steel Roller Conveyor Combo takes the guesswork out of it. Frame, steel rollers, and adjustable stands are pre-matched and ready to assemble, giving you a fully functional gravity conveyor line in a 450mm wide, 3000mm long configuration straight out of the box.

The Problem It Solves

• Sourcing conveyor components separately risks compatibility issues and delays - this combo is pre-matched and ready to assemble
• Gravity conveyors built with mismatched rollers and frames create uneven flow and jams - the TSSROLL450 rollers are engineered to suit the TSFRAME450 frame pitch and width
• Fixed-height conveyor stands can't adapt to different line heights or floor conditions - the TSFTC450 adjustable stands accommodate varying working heights
• Setting up a conveyor line from scratch takes time - this combo reduces procurement and setup time significantly

Key Features

• Overall assembled dimensions: 450(W) x 3000(L) x 720(H)mm - a practical mid-width configuration for cartons, totes, and general warehouse goods
• TSFRAME450 Conveyor Frame included - 450mm wide x 3000mm long mild steel frame, powder-coated royal blue; 75mm minimum roller pitch
• TSSROLL450 Steel Conveyor Rollers included - 420mm wide x 50mm diameter steel rollers; 120kg capacity per roller; 15mm pin width, 10mm pin diameter
• TSFTC450 Adjustable Conveyor Stands included - 450mm wide stands with adjustable height up to 720mm for flexible line configuration
• Gravity roller operation - no power required; goods move under their own weight for low-cost, low-maintenance product flow
• Mild steel construction - built for demanding warehouse, distribution, and manufacturing environments

Compatible Products

• TSFRAME450 Conveyor Frame (450 x 3000mm) - the frame included in this combo, also available separately
• 420 x 50mm Steel Conveyor Roller (TSSROLL450) - the rollers included in this combo, also available separately
• TSFTC450 Adjustable Conveyor Stand - the stands included in this combo, also available separately
• TSFRAME300 Conveyor Frame (300 x 3000mm) - narrower frame option for smaller goods
• TSFRAME600 Conveyor Frame (600 x 3000mm) - wider frame option for larger goods
• TSPROLL450 PVC Conveyor Roller - lighter-duty PVC roller alternative for the same frame width

Where It's Used

• Warehouses and distribution centres for carton flow, order picking lines, and goods movement between workstations
• Manufacturing facilities for assembly line product flow and component transport
• Retail and supermarket back-of-house for stock movement from receiving to storage
• Freight and logistics operations for loading dock product flow and sortation
• Available for delivery across Australia

Need to configure a longer line, multiple sections, or a custom width? Get in touch for a bulk quote.
