About

Learn what makes this product unique and why it’s right for you.

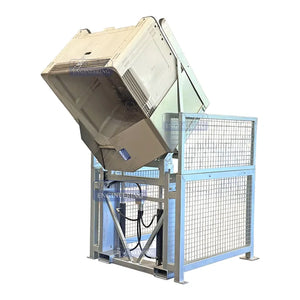

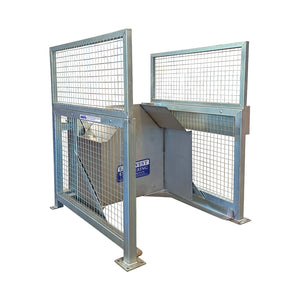

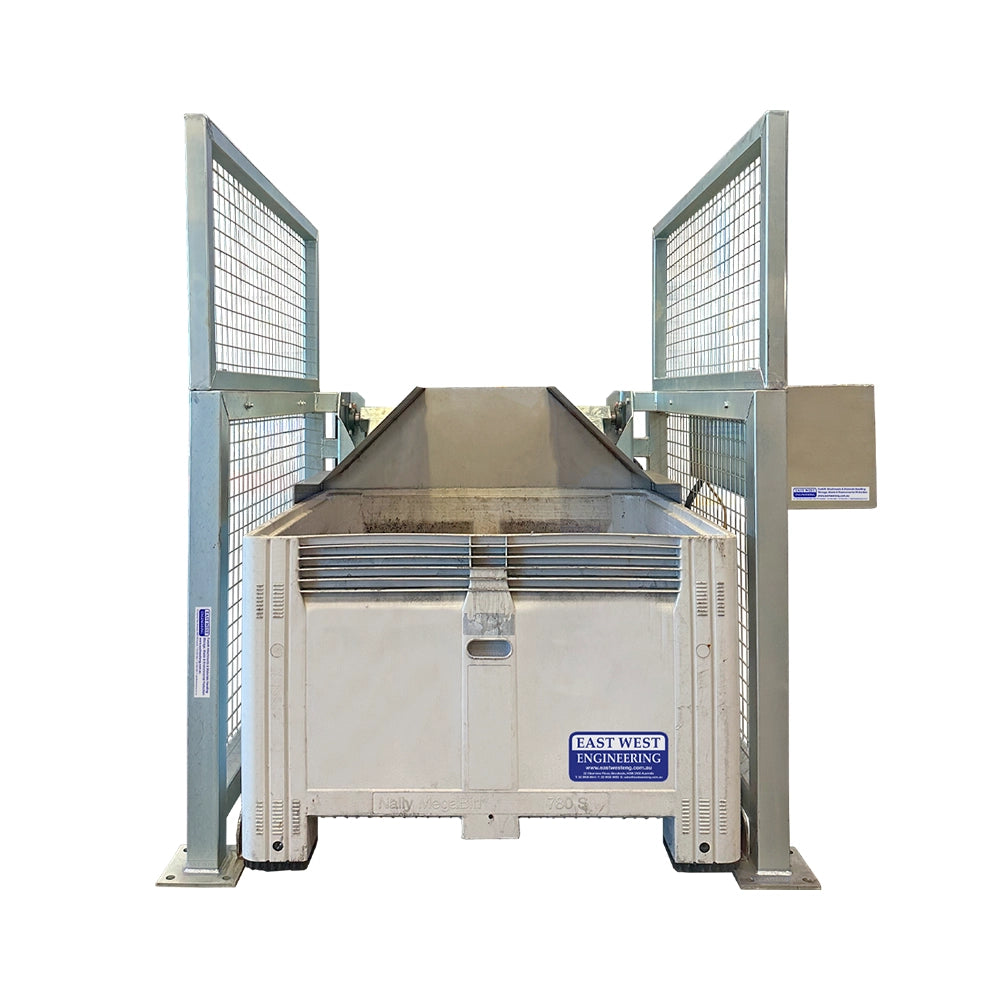

  • The BKN130 Floor Mounted Mega Bin Tipper with stainless steel chute is designed to allow the effortless tipping of nally bins.
  • Allows for 130 degree rotation of a nally bin
  • Operated by hydraulic lever
  • Stainless chute guides material flow
  • Designed with removable side safety barriers, upper barrier removable
  • Suitable for forklift or hand pallet jack bin loading
  • Hydraulic power pack, 240-volt, 2.2kw
  • Bin retainers secure mega bin in position during rotation
  • Tipping height approx. 1100mm above floor
  • 42 second full tipping cycle
  • Suitable for use in food industry
  • Zinc frame / 304 Stainless steel chute
LEARN THIS PRODUCT SPECIFICATION DATA
Model BKN310
Working Load Limit (W.L.L) 1000kg
Rotation 130°
Tipping Height 1100mm Above the floor approx.
Tipping Cycle 42 Seconds
Overall Dimensions 1745 x 1555 x 1400mm
Dimensions at Full Rotation 1745 x 2155 x 2670mm
Width Inside Cradle 1185mm
Finish Zinc frame, 304 Stainless chute
Unit Weight 550kg approx.
Learn what makes this product unique and why it’s right for you.
  • The BKN130 Floor Mounted Mega Bin Tipper with stainless steel chute is designed to allow the effortless tipping of nally bins.
  • Allows for 130 degree rotation of a nally bin
  • Operated by hydraulic lever
  • Stainless chute guides material flow
  • Designed with removable side safety barriers, upper barrier removable
  • Suitable for forklift or hand pallet jack bin loading
  • Hydraulic power pack, 240-volt, 2.2kw
  • Bin retainers secure mega bin in position during rotation
  • Tipping height approx. 1100mm above floor
  • 42 second full tipping cycle
  • Suitable for use in food industry
  • Zinc frame / 304 Stainless steel chute
LEARN THIS PRODUCT SPECIFICATION DATA
Model BKN310
Working Load Limit (W.L.L) 1000kg
Rotation 130°
Tipping Height 1100mm Above the floor approx.
Tipping Cycle 42 Seconds
Overall Dimensions 1745 x 1555 x 1400mm
Dimensions at Full Rotation 1745 x 2155 x 2670mm
Width Inside Cradle 1185mm
Finish Zinc frame, 304 Stainless chute
Unit Weight 550kg approx.
Custom Design
Handling Solutions Built for Your Needs.

Share:

SKU:

BKN130

Floor Mounted Mega Bin Hydraulic Tipper

130° Rotation of a Mega Bin
130° Rotation of a Mega Bin
  • Quote Required
$11,580.00
$11,580.00
GST Excluded. Shipping calculated at checkout.
