Bulky site waste? Collect, lift and empty it in one bin

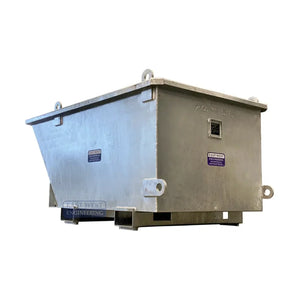

The East West Engineering CB20 Crane Bin handles site waste and heavy materials with a 2000 kg WLL and 1.25 m³ capacity, reducing repeated handling between collection and disposal.
The Problem It Solves
- Mixed site loads. Collect sand, gravel, excavation waste and scrap metal, or move materials such as rebar.
- Restricted access. Four-way fork entry gives more options when positioning the bin.
- Limited storage space. Stack up to three high when full to reduce space used on site and in transport.
Key Features
- Crane lugs. Provide lifting and upending points for crane handling.
- Rotator emptying. Side pockets allow discharge using a forklift fitted with a rotator.
- Removable drain plug. Allows collected liquid to be drained.
- Heavy-duty galvanised construction. Suits demanding construction and manufacturing tasks.
- Optional wheel kit. Available on request with two swivel and two fixed 150 mm wheels for ground-level movement.
Where It's Used
Construction sites, manufacturing facilities and material-handling areas collecting waste or transporting heavy loads.
LEARN THIS PRODUCT SPECIFICATION DATA
Model
CB20
Volume Capacity
1.25 m³
Working Load Limit (WLL)
2000 kg
Overall Dimensions (L x W x H)
1925 x 1170 x 1010 mm
Unit Weight
310 kg
Fork Pocket Sizes (As Listed)
185 x 90 mm / 155 x 55 mm
Fork Pocket Centres (As Listed)
725 mm / 600 mm
Fork Entry
4-way
Stacking
Up to 3 high when full
Finish
Galvanised
Drain Plug
Removable; fitted as standard
Optional Wheel Kit
Available on request; 2 swivel and 2 fixed wheels, 150 mm diameter
LEARN THIS PRODUCT SPECIFICATION DATA
Bulky site waste? Collect, lift and empty it in one bin
The East West Engineering CB20 Crane Bin handles site waste and heavy materials with a 2000 kg WLL and 1.25 m³ capacity, reducing repeated handling between collection and disposal.
The Problem It Solves
- Mixed site loads. Collect sand, gravel, excavation waste and scrap metal, or move materials such as rebar.
- Restricted access. Four-way fork entry gives more options when positioning the bin.
- Limited storage space. Stack up to three high when full to reduce space used on site and in transport.
Key Features
- Crane lugs. Provide lifting and upending points for crane handling.
- Rotator emptying. Side pockets allow discharge using a forklift fitted with a rotator.
- Removable drain plug. Allows collected liquid to be drained.
- Heavy-duty galvanised construction. Suits demanding construction and manufacturing tasks.
- Optional wheel kit. Available on request with two swivel and two fixed 150 mm wheels for ground-level movement.
Where It's Used
Construction sites, manufacturing facilities and material-handling areas collecting waste or transporting heavy loads.
Learn what makes this product unique and why it’s right for you.
Model
CB20
Volume Capacity
1.25 m³
Working Load Limit (WLL)
2000 kg
Overall Dimensions (L x W x H)
1925 x 1170 x 1010 mm
Unit Weight
310 kg
Fork Pocket Sizes (As Listed)
185 x 90 mm / 155 x 55 mm
Fork Pocket Centres (As Listed)
725 mm / 600 mm
Fork Entry
4-way
Stacking
Up to 3 high when full
Finish
Galvanised
Drain Plug
Removable; fitted as standard
Optional Wheel Kit
Available on request; 2 swivel and 2 fixed wheels, 150 mm diameter
SKU:
CB20
Heavy-duty Crane - Forklift Bin - 2000kg W.L.L
Collect site waste, move materials and stack to save space
Collect site waste, move materials and stack to save space
- Regular price
- $3,730.00
- Sale price
- $3,730.00
- Regular price
-
$3,730.00
GST Excluded.
Shipping calculated at checkout.
Free Shipping Exclusion & Freight quote required
Low Stock, secure yours now!
