Description
LEARN THIS PRODUCT SPECIFICATION DATA
First pallet hard to reach? Improve forklift access into containers

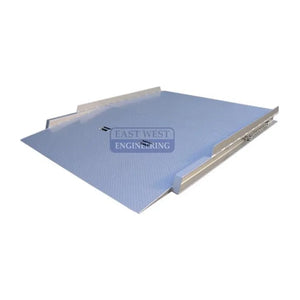

The East West Engineering CRLN8 Forklift Container Ramp combines an 8000 kg working load limit with a 3000 mm length for container loading and unloading.
The Problem It Solves
- Limited forward tilt. A 1500 mm horizontal section helps with first-pallet pickup when forklift forward tilt is insufficient.
- Awkward positioning. Side pockets and flip-up front tine pockets allow forklift access from all sides for placement and removal.
- Unsecured connections. Safety chains connect the ramp to the container during use.
Key Features
- Raised side plates. Provide an edge barrier to help reduce the risk of driving off the ramp sides.
- Heavy-duty construction. Designed for demanding forklift container-access tasks.
- Reinforced underside. Provides additional structural support under repeated use.
- Enamel paint finish. Provides a finished surface for workplace use.
Where It's Used
Warehouses, freight yards and dispatch areas where forklifts load or unload shipping containers.
LEARN THIS PRODUCT SPECIFICATION DATA
Model
CRLN8
Working Load Limit (WLL)
8000 kg
Dimensions (As Listed)
3000 x 2320 mm
Fork Pocket Size (As Listed)
155 x 50 / 65 mm
Fork Pocket Centres
718 mm
Unit Weight
600 kg
Horizontal Section Length
1500 mm
Forklift Handling Access
Side pockets and flip-up front tine pockets; access from all sides
Side Protection
Raised side plates
Container Connection
Safety chains
Underside
Reinforced
Finish
Enamel paint
LEARN THIS PRODUCT SPECIFICATION DATA
First pallet hard to reach? Improve forklift access into containers
The East West Engineering CRLN8 Forklift Container Ramp combines an 8000 kg working load limit with a 3000 mm length for container loading and unloading.
The Problem It Solves
- Limited forward tilt. A 1500 mm horizontal section helps with first-pallet pickup when forklift forward tilt is insufficient.
- Awkward positioning. Side pockets and flip-up front tine pockets allow forklift access from all sides for placement and removal.
- Unsecured connections. Safety chains connect the ramp to the container during use.
Key Features
- Raised side plates. Provide an edge barrier to help reduce the risk of driving off the ramp sides.
- Heavy-duty construction. Designed for demanding forklift container-access tasks.
- Reinforced underside. Provides additional structural support under repeated use.
- Enamel paint finish. Provides a finished surface for workplace use.
Where It's Used
Warehouses, freight yards and dispatch areas where forklifts load or unload shipping containers.
Learn what makes this product unique and why it’s right for you.
Model
CRLN8
Working Load Limit (WLL)
8000 kg
Dimensions (As Listed)
3000 x 2320 mm
Fork Pocket Size (As Listed)
155 x 50 / 65 mm
Fork Pocket Centres
718 mm
Unit Weight
600 kg
Horizontal Section Length
1500 mm
Forklift Handling Access
Side pockets and flip-up front tine pockets; access from all sides
Side Protection
Raised side plates
Container Connection
Safety chains
Underside
Reinforced
Finish
Enamel paint
SKU:
CRLN8
8T Rated Forklift Container Ramp - 3m Long
