About

Learn what makes this product unique and why it’s right for you.

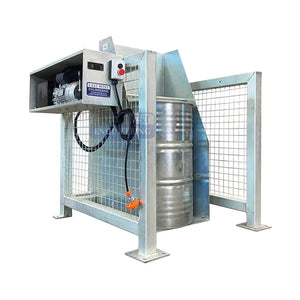

  • The BKN60 Floor Mounted Drum Tipper is designed to allow safe and effortless tipping of drums.
  • Allows for 130 degree rotation of a standard 205L drum
  • Suitable for forklift or hand pallet trolley bin loading
  • Operated by hydraulic lever
  • Designed with side safety barriers
  • Hydraulic power pack, 240-volt, 2.2kw
  • Can be customised to suit any application or drum type on request
  • Tipping height approx. 1m above floor
  • 20 second full tipping cycle
  • Stainless steel cradle available on request
  • Zinc finish
LEARN THIS PRODUCT SPECIFICATION DATA
Model BKN60
Working Load Limit (W.L.L) 600kg
Rotation 130°
Overall Dimensions 1360 x 1255 x 1400mm
Width Inside Cradle 640mm
Fork Pocket Size 185 x 60mm
Fork Pocket Centres 350mm
Unit Weight 350kg
Learn what makes this product unique and why it’s right for you.
  • The BKN60 Floor Mounted Drum Tipper is designed to allow safe and effortless tipping of drums.
  • Allows for 130 degree rotation of a standard 205L drum
  • Suitable for forklift or hand pallet trolley bin loading
  • Operated by hydraulic lever
  • Designed with side safety barriers
  • Hydraulic power pack, 240-volt, 2.2kw
  • Can be customised to suit any application or drum type on request
  • Tipping height approx. 1m above floor
  • 20 second full tipping cycle
  • Stainless steel cradle available on request
  • Zinc finish
LEARN THIS PRODUCT SPECIFICATION DATA
Model BKN60
Working Load Limit (W.L.L) 600kg
Rotation 130°
Overall Dimensions 1360 x 1255 x 1400mm
Width Inside Cradle 640mm
Fork Pocket Size 185 x 60mm
Fork Pocket Centres 350mm
Unit Weight 350kg
Custom Design
Handling Solutions Built for Your Needs.

Share:

SKU:

BKN60

Floor Mounted Drum Tipper - 600kg W.L.L

For A Standard 205L Drum
For A Standard 205L Drum
  • Quote Required
$8,360.00
$8,360.00
GST Excluded. Shipping calculated at checkout.
Freight quote required

This product has oversized dimensions and heavy weight, so shipping costs differ greatly depending on your location. Please submit a request for a personalised freight quote.
