Description
Learn what makes this product unique and why it’s right for you.

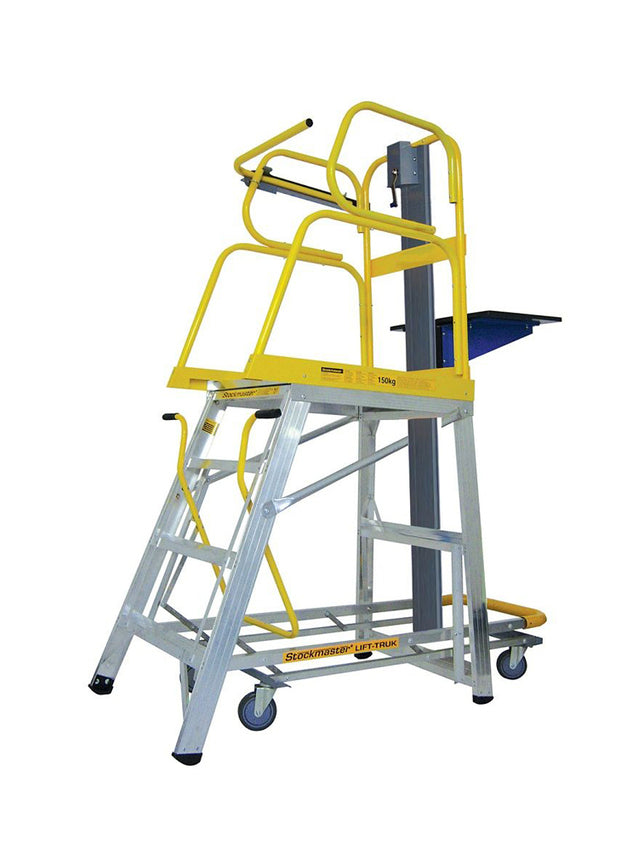

- StockMaster Lift-Truk is a safe and easy-to-use lifting order picking ladder with automatic braking.
- Items weighing up to 60 kg can be picked, lowered and transported in one action.
- The whole stock-picking process can be safely handled by one person removing the need for a second person to pass items up or down.
- Featuring a reliable manually operated winch, maintenance costs are minimal, and there is no downtime for charging of batteries.
- Items placed on the lift table can be lowered and moved similar to a forklift, saving the time to transfer them to a trolley, and reducing the need for trolleys.
- The dangerous practice of carrying items up or down the ladder is eliminated, and reduce handling time.
- Designed and tested to a 150 kg load rating.
- Manufactured to meet or exceed all the requirements of the Australian / New Zealand standard AS/NZS 1892.1:1996
DATA SHEET
| Model | Platform Height | Weight |
| SM-LT04MP | 1145 mm | 62 kg |
| SM-LT05MP | 1435 mm | 66 kg |
| SM-LT06MP | 1720 mm | 70 kg |
| SM-LT07MP | 2005 mm | 74 kg |
| SM-LT08MP | 2295 mm | 81 kg |
| SM-LT09MP | 2580 mm | 86 kg |
| SM-LT10MP | 2865 mm | 90 kg |
| SM-LT11MP | 3155 mm | 96 kg |
| SM-LT12MP | 3440 mm | 103 kg |
| SM-LT13MP | 3725 mm | 109 kg |
| SM-LT14MP | 4015 mm | 114 kg |
StockMaster Lift-Truk Size Selection Chart
| Model | Platform Height | Working Range up to 5kg item | Working Range up to 20kg item |
| SM-LT04MP | 1145 mm | 1.4 - 2.8m | 1.4 - 2.3m |
| SM-LT05MP | 1435 mm | 1.7 - 3.1m | 1.7 - 2.6m |
| SM-LT06MP | 1720 mm | 2.0 - 3.4m | 2.0 - 2.9m |
| SM-LT07MP | 2005 mm | 2.3 - 3.7m | 2.3 - 3.2m |
| SM-LT08MP | 2295 mm | 2.5 - 3.9m | 2.5 - 3.4m |
| SM-LT09MP | 2580 mm | 2.8 - 4.2m | 2.8 - 3.7m |
| SM-LT10MP | 2865 mm | 3.1 - 4.5m | 3.1 - 4.0m |
| SM-LT11MP | 3155 mm | 3.4 - 4.8m | 3.4 - 4.2m |
| SM-LT12MP | 3440 mm | 3.7 - 5.1m | 3.7 - 4.6m |
| SM-LT13MP | 3725 mm | 4.0 - 5.4m | 4.0 - 4.9m |
| SM-LT14MP | 4015 mm | 4.3 - 5.7m | 4.3 - 5.2m |
This selection chart must be used only as a guide for the Working Range. The working Range is the height above ground at which an operator can work when standing on the platform. The Operating Environment must also be known before a final choice of the product is made.
Learn what makes this product unique and why it’s right for you.
- StockMaster Lift-Truk is a safe and easy-to-use lifting order picking ladder with automatic braking.
- Items weighing up to 60 kg can be picked, lowered and transported in one action.
- The whole stock-picking process can be safely handled by one person removing the need for a second person to pass items up or down.
- Featuring a reliable manually operated winch, maintenance costs are minimal, and there is no downtime for charging of batteries.
- Items placed on the lift table can be lowered and moved similar to a forklift, saving the time to transfer them to a trolley, and reducing the need for trolleys.
- The dangerous practice of carrying items up or down the ladder is eliminated, and reduce handling time.
- Designed and tested to a 150 kg load rating.
- Manufactured to meet or exceed all the requirements of the Australian / New Zealand standard AS/NZS 1892.1:1996
DATA SHEET
| Model | Platform Height | Weight |
| SM-LT04MP | 1145 mm | 62 kg |
| SM-LT05MP | 1435 mm | 66 kg |
| SM-LT06MP | 1720 mm | 70 kg |
| SM-LT07MP | 2005 mm | 74 kg |
| SM-LT08MP | 2295 mm | 81 kg |
| SM-LT09MP | 2580 mm | 86 kg |
| SM-LT10MP | 2865 mm | 90 kg |
| SM-LT11MP | 3155 mm | 96 kg |
| SM-LT12MP | 3440 mm | 103 kg |
| SM-LT13MP | 3725 mm | 109 kg |
| SM-LT14MP | 4015 mm | 114 kg |
StockMaster Lift-Truk Size Selection Chart
| Model | Platform Height | Working Range up to 5kg item | Working Range up to 20kg item |
| SM-LT04MP | 1145 mm | 1.4 - 2.8m | 1.4 - 2.3m |
| SM-LT05MP | 1435 mm | 1.7 - 3.1m | 1.7 - 2.6m |
| SM-LT06MP | 1720 mm | 2.0 - 3.4m | 2.0 - 2.9m |
| SM-LT07MP | 2005 mm | 2.3 - 3.7m | 2.3 - 3.2m |
| SM-LT08MP | 2295 mm | 2.5 - 3.9m | 2.5 - 3.4m |
| SM-LT09MP | 2580 mm | 2.8 - 4.2m | 2.8 - 3.7m |
| SM-LT10MP | 2865 mm | 3.1 - 4.5m | 3.1 - 4.0m |
| SM-LT11MP | 3155 mm | 3.4 - 4.8m | 3.4 - 4.2m |
| SM-LT12MP | 3440 mm | 3.7 - 5.1m | 3.7 - 4.6m |
| SM-LT13MP | 3725 mm | 4.0 - 5.4m | 4.0 - 4.9m |
| SM-LT14MP | 4015 mm | 4.3 - 5.7m | 4.3 - 5.2m |
This selection chart must be used only as a guide for the Working Range. The working Range is the height above ground at which an operator can work when standing on the platform. The Operating Environment must also be known before a final choice of the product is made.
SKU:
SM-LT04MP
StockMaster Lift-Truk Manual Order Picking Ladder - 150kg Rated
- Regular price
- $6,483.60
- Sale price
- $6,483.60
- Regular price
-
GST Excluded.
Shipping calculated at checkout.
Limited stock. Contact us to confirm before purchase.
