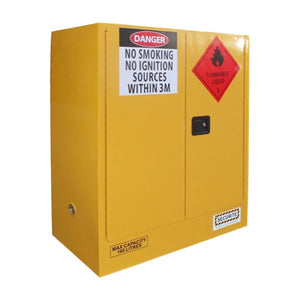

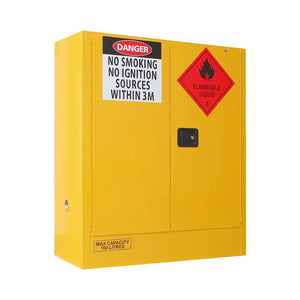

160L Dangerous Goods Cabinet for Class 3 Storage

Sites that store larger volumes of flammable liquids need a cabinet that keeps pace with compliance requirements - without compromising on space efficiency. The SECURiTE FGC160 Flammable Liquids Cabinet delivers AS/NZS 1940:2017-compliant storage for Class 3 dangerous goods in a tall, two-shelf configuration suited to high-volume industrial and commercial environments. Double-walled steel construction, a bunded base, and V-groove shelving work together to contain spills, reduce ignition risk, and keep your site compliant.

The Problem It Solves

• High-volume storage without the footprint. At 160 litres with a tall profile (1100 x 460 x 1295mm), the FGC160 maximises vertical space - ideal for sites where floor space is limited but storage needs are significant.
• Spill and leak risk. The bunded base and V-groove channel shelves capture and direct spills, preventing liquids from reaching ignition sources or escaping the cabinet.
• Ignition hazards. Double-walled steel construction and flame-arrestor vents reduce heat transfer and block ignition from external sources.
• Compliance gaps. Storing Class 3 flammable liquids without an approved cabinet puts your site at risk of WorkSafe and regulatory non-compliance.

Key Features

• AS/NZS 1940:2017 compliant. Meets Australian and New Zealand standards for the storage of flammable and combustible liquids - a mandatory requirement for most regulated workplaces.
• WorkSafe NZ approved. Multiple units supplied to customers requiring WorkSafe NZ approval.
• Suitable for Class 3. Class 3 flammable liquids including solvents, fuels, thinners, paints, and lacquers.
• Double-walled steel construction. Creates an insulating air gap that reduces heat transfer and enhances fire resistance.
• Bunded base. Captures leaks and spills for easy retrieval and cleanup - prevents liquids from escaping the cabinet.

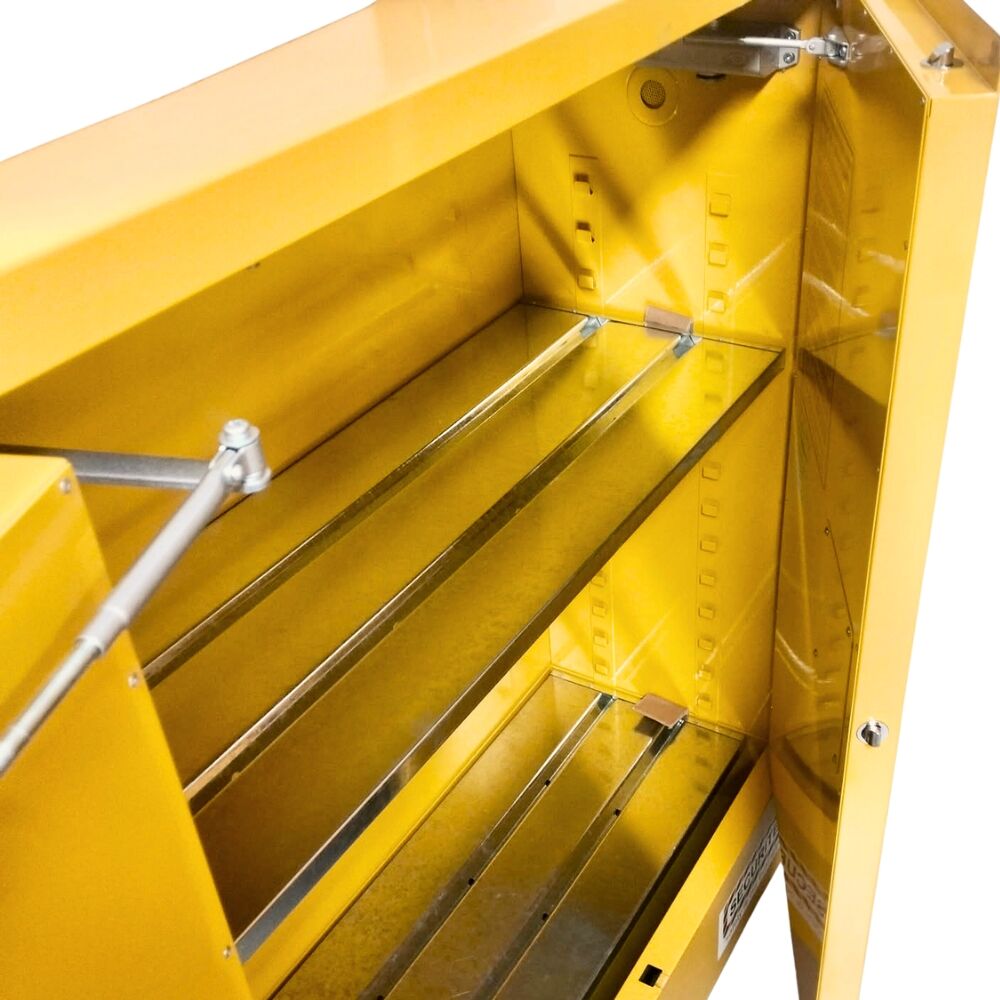

• V-groove channel shelves. Precision-formed channels provide greater structural strength than flat-sheet shelving and direct spilled liquids into the bunded base via punched drainage holes.
• Flame-arrestor vents. Integrated vents fitted with flame-arresting mesh for controlled ventilation and ignition prevention.
• Earthing points. Dissipates static electricity to reduce ignition hazards.

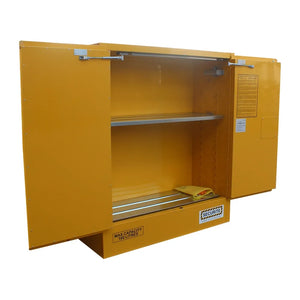

• 2 adjustable shelves. Height-adjustable for flexible configuration to suit different container sizes.
• Adjustable feet. Ensures stable placement on uneven surfaces.

Compatible Cabinets

• Smaller storage needs? See the 30L & 60L Flammable Liquids Cabinets (FGC30 / FGC60) or the 100L Flammable Liquids Cabinet (FGC100).
• Higher volume requirements? See the 250L Flammable Liquids Cabinet (FGC250).

Where It's Used

Workshops, laboratories, industrial facilities, transport hubs, manufacturing plants, and any compliance-driven environment where Class 3 flammable liquids need to be stored safely. Stocked and available across Australia and New Zealand.

Need to equip multiple teams or sites? Get in touch for a bulk quote.
