Safety & Compliance

• Fully compliant with AS/NZS 1940:2017 standards.
• Multiple units supplied to customers requiring WorkSafe NZ approval.
• Designed for safe storage and segregation of Class 3 flammable liquids.

Shelf Design & Construction

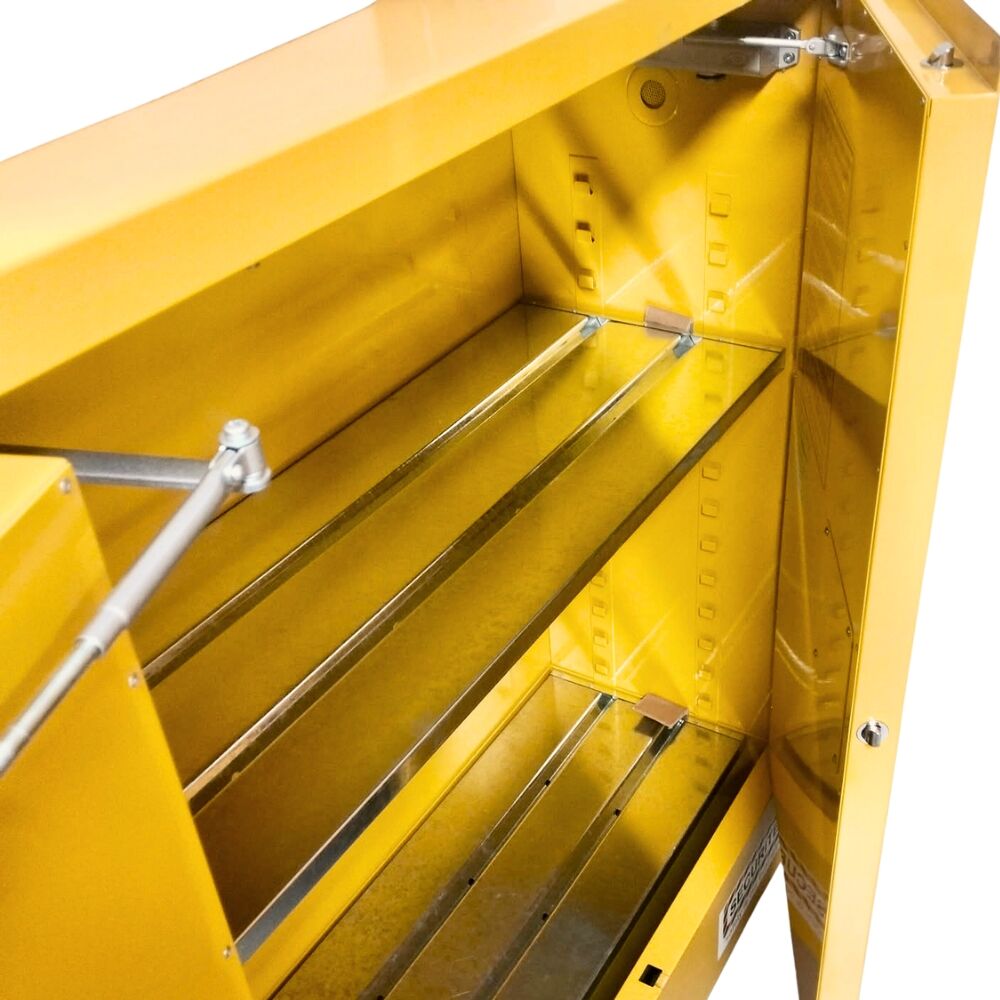

V-Groove Channel Shelves:

• Reinforced using precision-formed “V” groove channels.
• Provides significantly greater structural strength and rigidity compared to flat-sheet shelving.
• Improves load-bearing capability for safe storage of Class 3 flammable liquids.

Punched Drainage Holes:

• Strategically placed to allow liquids to be efficiently directed from the grooves.
• Enhances spill containment and supports drainage into the bunded base.
• Superior performance compared to simple flat-sheet perforations.

Primary Safety Functions:

• Spill Control: Prevents and contains accidental spillage through bunded base and channelled shelf system.
• Ignition Prevention: Isolates flammable liquids inside the cabinet to reduce ignition risk.
• Safe Storage Practices: Encourages proper housekeeping by consolidating flammable liquids and segregating them from incompatible substances.

Cabinet Features

• Flame-Arrestor Vents - Integrated vents fitted with flame-arresting mesh for controlled ventilation.

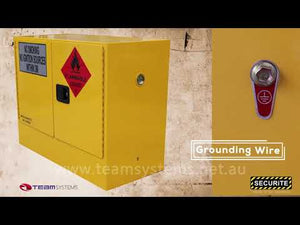

• Earthing Points - Provides grounding to dissipate static electricity and reduce ignition hazards.

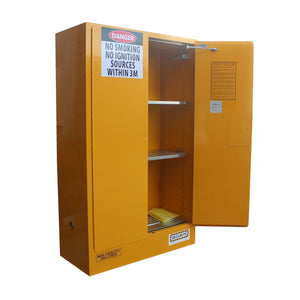

• Adjustable Shelving - Height-adjustable shelves for flexible configuration according to container size.
• Adjustable Feet - Ensures stable placement on uneven surfaces.
• Bunded Base Section
  • Captures leaks and spills.
  • Easy access for cleaning and spill retrieval.
• Double-Walled Steel Construction
  • Creates an insulating air gap to reduce heat transfer.
  • Enhances fire resistance and cabinet integrity.

Applications

• Storage of Class 3 flammable liquids such as solvents, fuels, thinners, and chemicals.
• Workshops, laboratories, industrial facilities, transport hubs, and compliance-driven environments.
